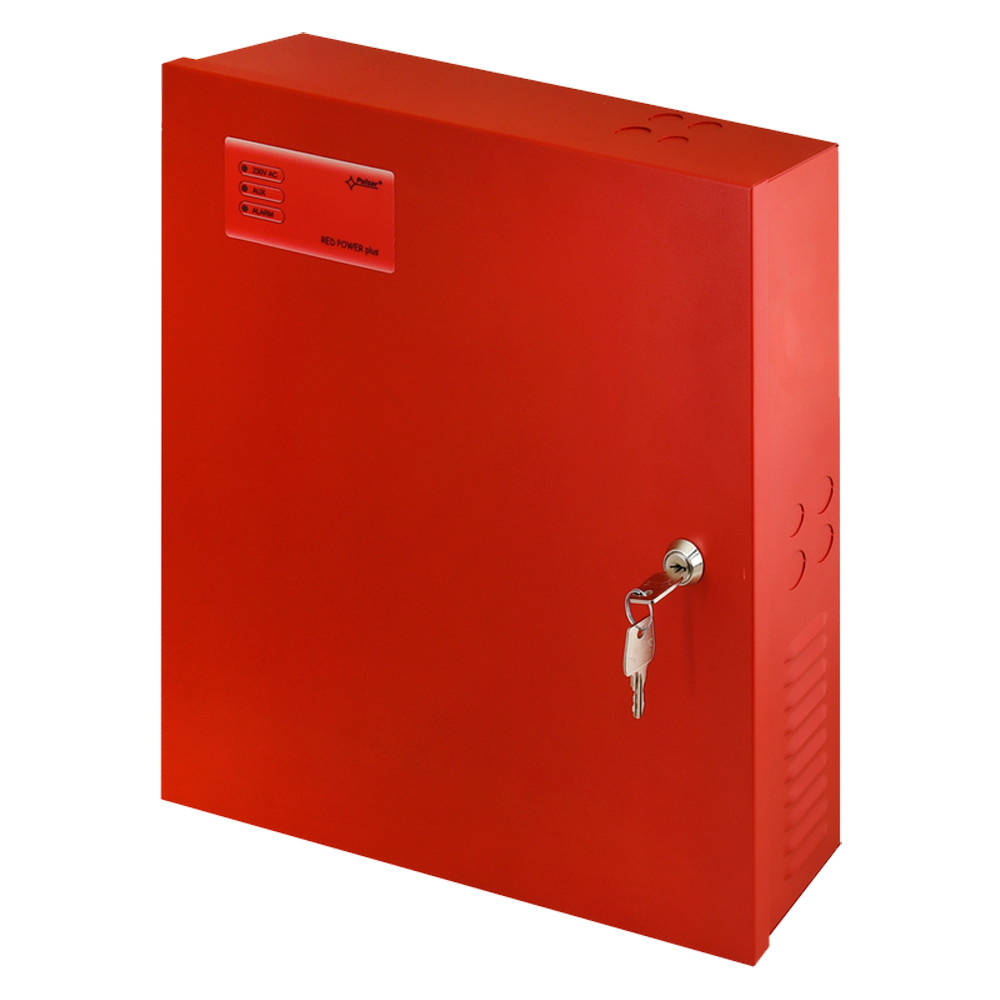

PD-5A17-FIRE

Power supply - Certificate EN54-4 - Output current 4.2A - Up to 5A for 5 minutes - Auxiliary fault outputs - Capacity for 2 12V 17Ah batteries

Availability

2-5 Days

Description

Power supply

Certificate EN54-4

Output current 4.2A (Maximum output up to 5A for 5 minutes)

Auxiliary power failure and general fault outputs

230V AC operating voltage

Capacity for 2 12V 17Ah batteries

Specifications

Power supply input	230VAC
Output Voltage	22~27.6VDC
Efficiency	87%
Output current	Nominal: 42A Maximum: 5A (5 minutes) Middle charging current: 0.8A
Back-up battery	Supports up to 2x12VDC / 17Ah
Permitted cable	Up to 2.5mm2
Protections	SCP, OLP, OVP, UVP, tamper - opening of the box
Materials	Plate DC01, 1mm, RAL3001 (red), made of metal
Closing	Lock (1xMR027, of the same code)
Degree of protection of the enclosure	IP30
Dimensions	385 x 402 x 88 [+/-2 mm]]

Contents

Power supply

Instructions
