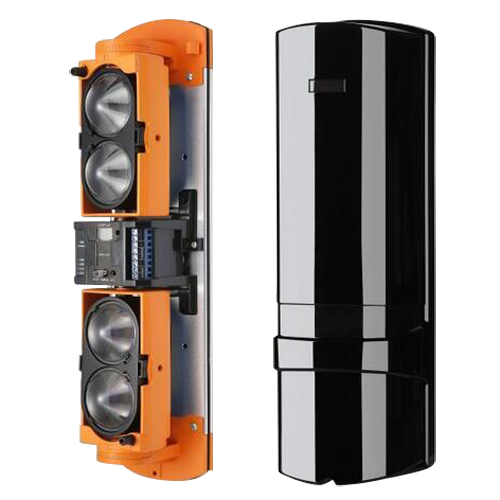

ABH-150L
65,83 €
70,78 €
70,78 €
Infrared barrier detector - Wired | 4 beams | Function AND OR - Max distance. detection 150 / 450 m - High configuration capacity - Tamper | Relay Outputs | LED Display - Power supply 12~24VDC/VAC
Description
- Quadruple infrared beam barrier for exterior
- Wired
- Maximum detection transmitter / receiver 450 m (interior) and 150 m (exterior)
- Quadruple adjustable lens
- H: ±90º / V: ±10º
- AND/OR function
- DIP Switch for programming
- 4 work frequencies
- Easy programming over LED Display
- Power 12~24 VDC/VAC
Specifications
| Detection range | 450m indoor / 150m outdoor |
| Number of beams | 4 |
| Detection method | Interruption of the 4 beams at once or only 2 (up o down) |
| Interruption time | 50ms, 100ms, 300ms, 700ms (available) |
| Frequency channels | 4 different channels over DIP Switch |
| Alarm outputs | 1 relay NO/NC (max. 30VDC/VAC, 0.5A), Tamper NC |
| Alignment angle | Horizontal 180°(±90°), Vertical 20°(±10°) |
| Adjustment method | Over LCD Display between 0-99 |
| Operating temperature | -25ºC ~ +55ºC |
| Degree of protection | IP65 |
| Power | 12~24 VDC/VAC, 90 mA max. |
| Dimensions | 291 (H) x 92 (W) x 90 (D) mm |
