Contents
- Infrared barrier
- Installation material
- User instructions
ABI100-1086
36,27 €
39,00 €
39,00 €

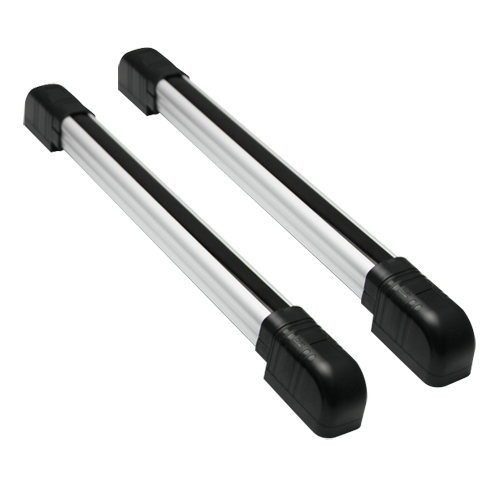

Infrared barrier detector - Wired | 6 beams - Max distance. The detection 100 m - Easy installation with LED and buzzer - NC/NO relay outputs - Power supply 9~30VDC
Description
- Infrared barrier of 6 beams for outdoor
- Wired
- Maximum sender / receiver detection 100 m (exterior)
- Horizontal adjustment 180º (±90º)
- 2 work frequencies
- LED and buzzer for easy installation
- Power supply 12~18 VDC
Specifications
| Detection range | 100m outdoor |
| Number of beams | 6 |
| Detection method | Interruption of 2 continuous beams at a time |
| Sensitivity | Adjustable between L, M H |
| Frequency channels | 2 different channels over DIP Switch |
| Alarm outputs | 1 relay NO/NC (max. 30VDC/VAC, 0.5A) |
| Alignment angle | Horizontal 180°(±90°) |
| Adjustment method | Over LED and buzzer |
| Operating temperature | -25ºC ~ +55ºC |
| Degree of protection | IP65 |
| Power | 12~18 VDC, 90 mA max. |
| Dimensions | 108 cm height |
