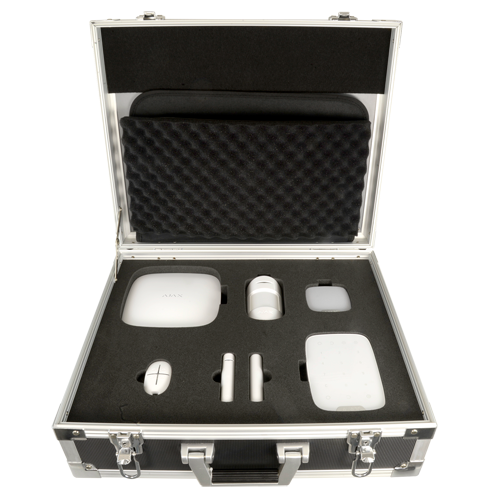

Demo case with the professional alarm system AJAX.
The briefcase is ready for doing demonstrations of the Ajax intrusion system anywhere, you only need a SIM card to connect the Hub, the brain of the system, and a smartphone to use the Ajax Systems Security APP and show the customer the main features of the alarm system that revolutionizes Europe: the simple and intuitive use of the App, the maximum configuration capacity and the control of the wireless installation.
The case has an aluminum profile and safety lock and is made with the highest standards of design and quality to ensure a high durability.
Inside we find the most frequent elements in an alarm system:
PIR volumetric detector, pet immune, double technology
Bidirectional
AJHUB-W: Central alarm panel
AJ-MOTIONPROTECT-W: PIR pet immune motion detector
AJ-DOORPROTECT-W: Magnetic door/window contact.
AJ-SPACECONTROL-W: Multi-functional bidirectional remote control.
AJ-KEYPAD-W: Independent wireless keypad
AJ-HOMESIREN-W: Indoor siren
The briefcase has been designed and made to serve as commercial support in those visits that require on-site demonstration, offering the client a complete vision of the system: elegant design of the different parts, complete and simple APP management, control and management of the different parts and users.
|
Control Panel |
|
| Brand | AJAX |
| Model | AJ-HUB-W |
| Security grade | Grade 2 |
| RF frequency | 868 MHz. Jeweller protocol |
| Internal security | Tamper-resistant opening |
| Internal siren | No |
| Communication | Ethernet / GPRS |
| Maximum devices | 100 |
| Number or users | Up to 10 |
| Housing material | ABS plastic |
| Power | AC 110~250 V, 50/60 Hz |
| Temp. operation | 0º C ~ 50º C |
| Dimensions | 163 (H) x 163 (W) x 36 (D) mm |
|
Magnetic Contact |
|
| Model | AJ-DOORPROTECT-W |
| Security grade | Grade 2 |
| Transmission distance | ≤ 2000 m (in open space) |
| Frequency | 868 MHz |
| Battery | 1 battery CR123A 3.0 V (approximate life time 7 years) |
| Housing material | ABS plastic |
| Dimensions | 90 mm (D) x 20 (Ø) mm |
|
PIR detector |
|
| Model | AJ-MOTIONPROTECT-W |
| Technology | PIR Motion detector |
| Security grade | Grade 2 |
| PIR lens | 24 zones and 6 planes |
| Detection range | 12 m / H: 88.5º / V: 80º / Installation 2.4 m |
| Pet immunity | ≤ 20 kg, ≤ 50 cm |
| Frequency | 868 MHz |
| Transmission distance | ≤ 2000 m (in open space) |
| Masking | No |
| Sensitivity | Adjustable. 3 levels (low, medium and high) |
| LEDs indication | Alarm, tamper, signal |
| Battery | 1 battery CR123A 3.0 V (approximate life time 7 years) |
| Temp. operation | 0º C ~ 50º C |
| Housing material | ABS plastic |
| Dimensions (without bracket) | 110 (H) x 65 (W) x 50 (D) mm |
|
Remote control |
|
| Model | AJ-SPACECONTROL-W |
| Power | 1 battery CR2032 of 3 V |
| Transmission distance | ≤ 1000 m (in open space) |
| Frequency | 868 MHz |
| Battery | 1 battery CR123A 3.0 V (approximate life time 5 years) |
| Temp. operation | -20º C ~ 50º C |
| Housing material | ABS plastic |
| Dimensions | 65 (H) x 37 (W) x 10 (D) mm |
|
Wireless keypad |
|
| Model | AJ-KEYPAD-W |
| Security grade | Grade 2 |
| Functions | Armed, disarmed, partially armed and emergency |
| Frequency | 868 MHz Jeweller |
| Transmission distance | ≤ 1700 m in open space |
| Compatibility | Compatible with Ajax Hubs with firmware 2.0 or higher |
| Battery | 4 AAA batteries 1.5 V (approximate life time 2 years) |
| Housing material | ABS plastic |
| Temp. operation | -10º C ~ 50º C |
| Dimensions | 150 (H) x 102.5 (W) x 13.2 (D) mm |
|
Indoor siren |
|
| Model | AJ-HOMESIREN-W |
| Security grade | Grade 2 |
| Volume | 81~97 dB at 1 meter |
| Alarm duration | Configurable between 3 seconds and 3 minutes |
| Battery | 2 batteries CR123A 3.0 V (approximate life time 5 years) |
| Frequency | 868 MHz Jeweller |
| Transmission distance | ≤ 2000 m in open space |
| LED indicators | Alarm warning and sound signal when armed/disarmed |
| Internal security | Tamper-resistant back |
| Protection | IP50 |
| Dimensions | 75 (H) x 75 (W) x 27 (D)mm |
| Weight | 96 g |
Metal demonstration briefcase
AJ-HUB-W control panel
PIR detector AJ-MOTIONPROTECT-W
Magnetic Contact AJ-DOORPROTECT-W
Remote control AJ-SPACECONTROL-W
AJ-KEYPAD-W wireless keypad
AJ-HOMESIREN-W indoor siren
