Contents
Magnetic contact
User instructions
Mounting material

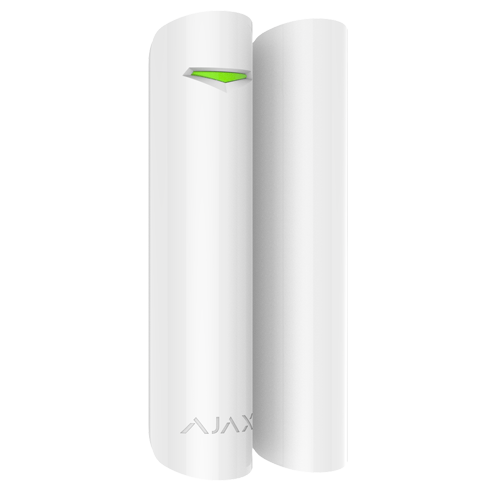

AJ-DOORPROTECT-W
Door/window magnetic contact - 868MHz Jeweller Wireless - Grade 2 approved - LED indicator and internal antenna - 1 wired input / 1 Tamper - Power supply 1 battery CR123A 3.0 V
Description
Ajax
Door/Window magnetic reed switch
Bidirectional
Grade 2 approved
868MHz Jeweller Wireless
Internal antenna range open space 1200 m
Open/Close indicator detection
Supports wired sensor input
Tamper-resistant opening
Power supply 1 battery CR123A 3.0 V (estimated duration 7 years)
Interior use
Includes mounting bracket
White colour
Specifications
| Brand | Ajax |
| Frequency | 868 MHz Jeweller |
| Security grade | Grade 2 |
| Transmission distance | ≤ 1200 m in open space |
| LED indicators | Alarm, tamper, signal |
| Housing material | ABS plastic |
| Battery | 1 battery CR123A 3.0 V (approximate life time 7 years) |
| Temp. operation | 0º C ~ 50º C |
| Transmitter dimensions | 90 mm (D) x 20 (Ø) mm |
| Magnet dimensions | 90 mm (D) x 20 (Ø) mm |
