Relay for single intelligent light switch
Installation kit (includes one capacitor)
User instructions
AJ-LIGHTCORE-1G
35,15 €
37,80 €
37,80 €
Relay for single intelligent light switch - 868MHz Jeweller Wireless - Communication range to 1100 m - Power supply 230 V AC 50 Hz - No need for neutral wire
Description
Ajax
Relay for single intelligent light switch
Bidirectional
868MHz Jeweller Wireless
Radio communication range 1100 m
Power supply 230 ~ V AC
No neutral wire required for operation
Activated by bringing the hand within 15 mm of the touch panel
Specifications
| Brand | Ajax |
| Function | Relay for single intelligent light switch |
| Transmission distance | Up to 1100 m in open space |
| Frequency | 868 MHz Jeweller |
| Power supply input | AC 230 V / 50 Hz |
| Average consumption | 200 mW |
| Switched device power | from 5W to 600 W |
| Current and temperature protection | 2.6 A / +60ºC |
| Compatibility | Hub Plus, Hub 2, Hub 2 Plus, ReX, ReX 2 and Hub Hybrid |
| Use | Interior |
| Temp. operation | -10º C ~ 40º C |
| Dimensions | 76.3 (H) x 72.3 (W) x 29.2 (D) mm |
| Weight | 48.34 g |

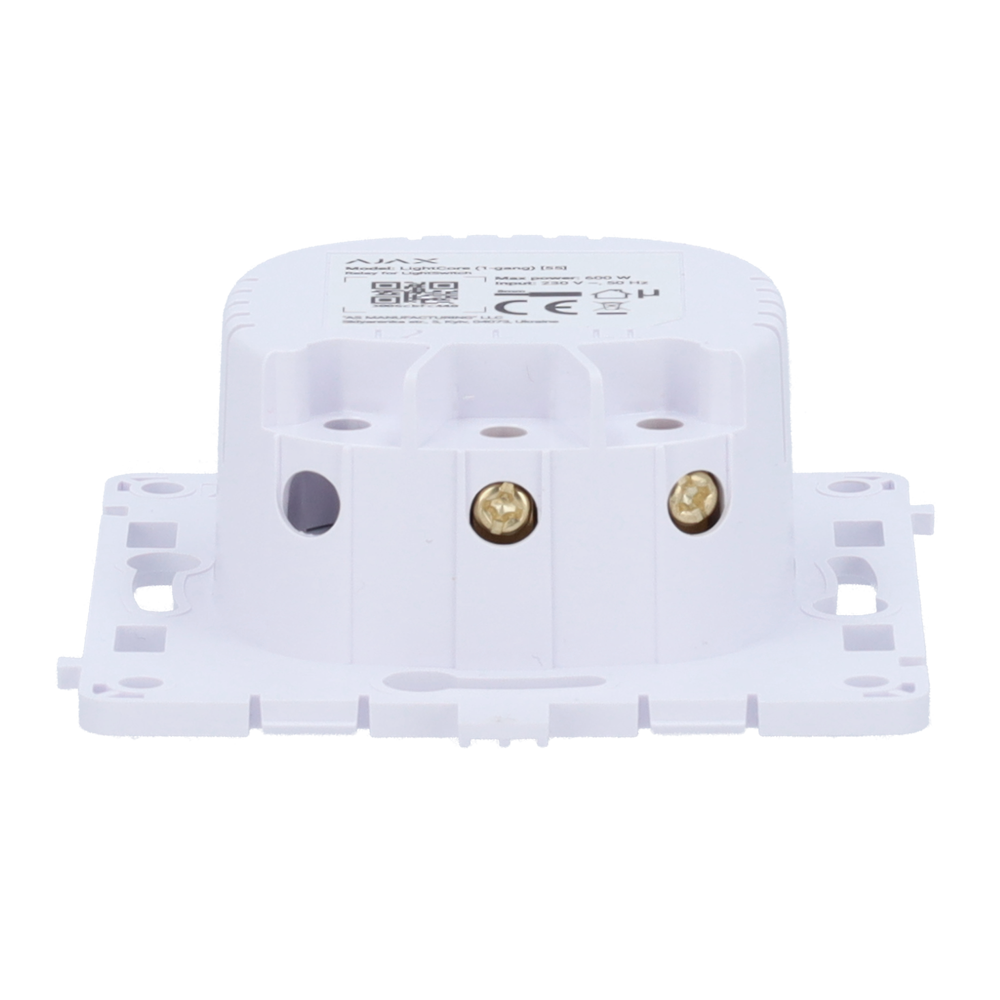

| Terminals | 1 terminal for power phase cable and 1 terminal for power cable of a lighting device or other load (without neutral cable) |
