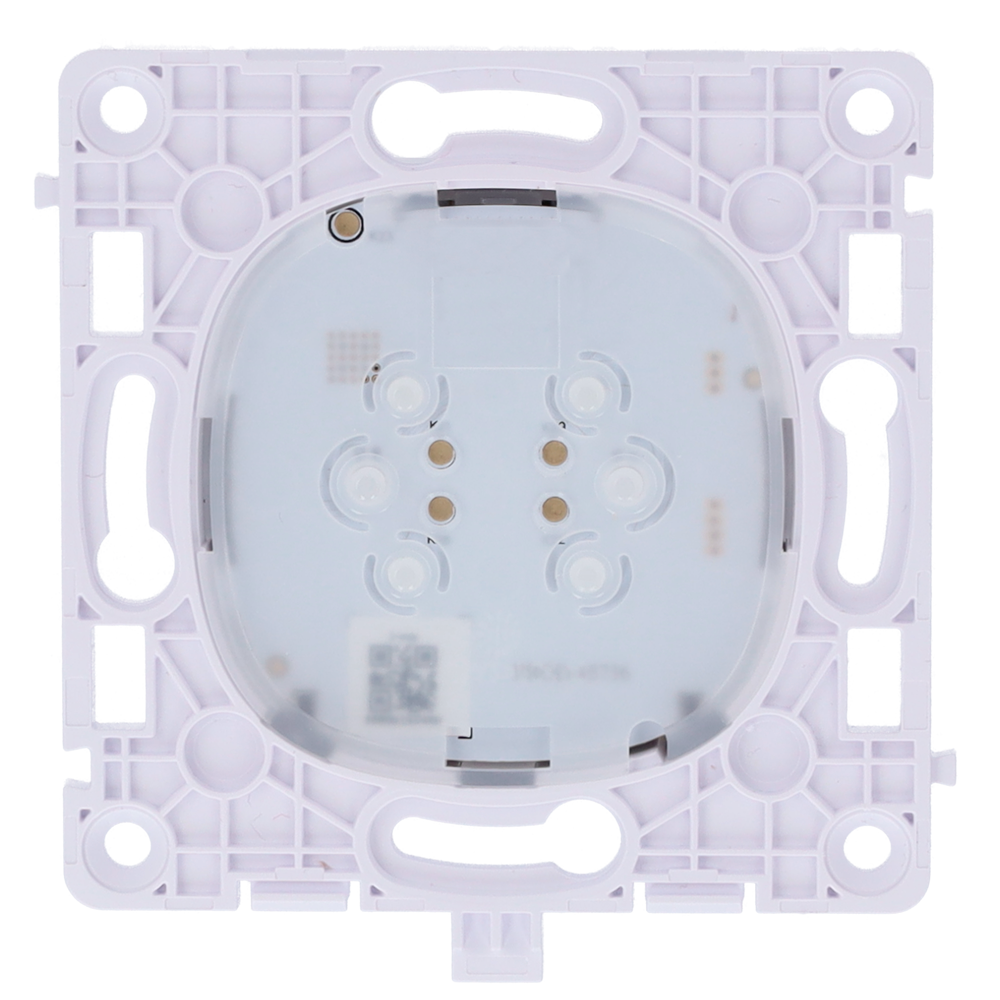

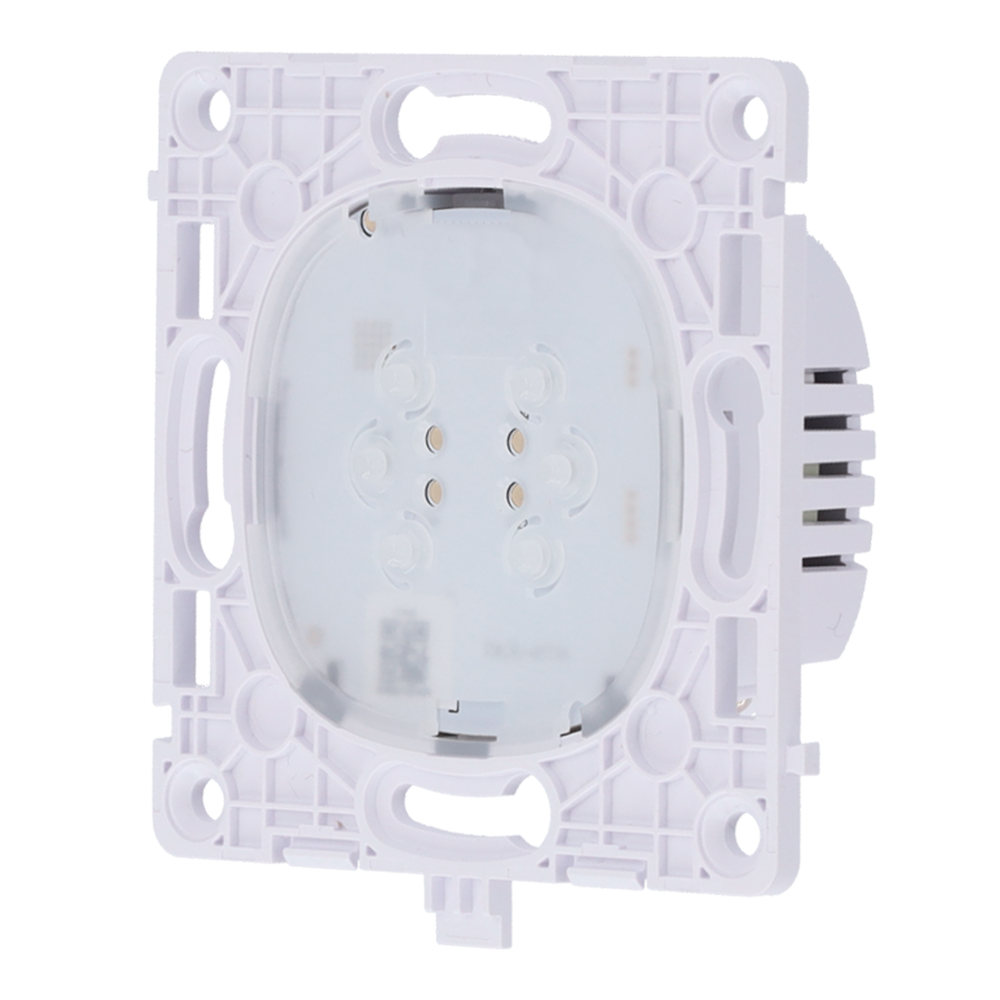

AJ-LIGHTCORE-2W

37,57 €
40,40 €

Relay for switchable light switch - 868MHz Jeweller Wireless - Communication range to 1100 m - Power supply 230 V AC 50 Hz - No need for neutral wire

Availability

2-5 Days

Buy

Description

Ajax

Relay for intelligent switchable light switch (2 directions)

Bidirectional

868MHz Jeweller Wireless

Radio communication range 1100 m

Power supply 230 ~ V AC

No neutral wire required for operation

Activated by bringing the hand within 15 mm of the touch panel

Specifications

Brand	Ajax
Function	Relay for intelligent switchable light switch (2 directions)
Transmission distance	Up to 1100 m in open space
Frequency	868 MHz Jeweller
Power supply input	AC 230 V / 50 Hz
Average consumption	200 mW
Switched device power	from 5W to 600 W
Current and temperature protection	2.6 A / +60ºC
Compatibility	Hub Plus, Hub 2, Hub 2 Plus, ReX, ReX 2 and Hub Hybrid
Use	Interior
Temp. operation	-10º C ~ 40º C
Dimensions	76.3 (H) x 72.3 (W) x 29.2 (D) mm
Weight	48.34 g

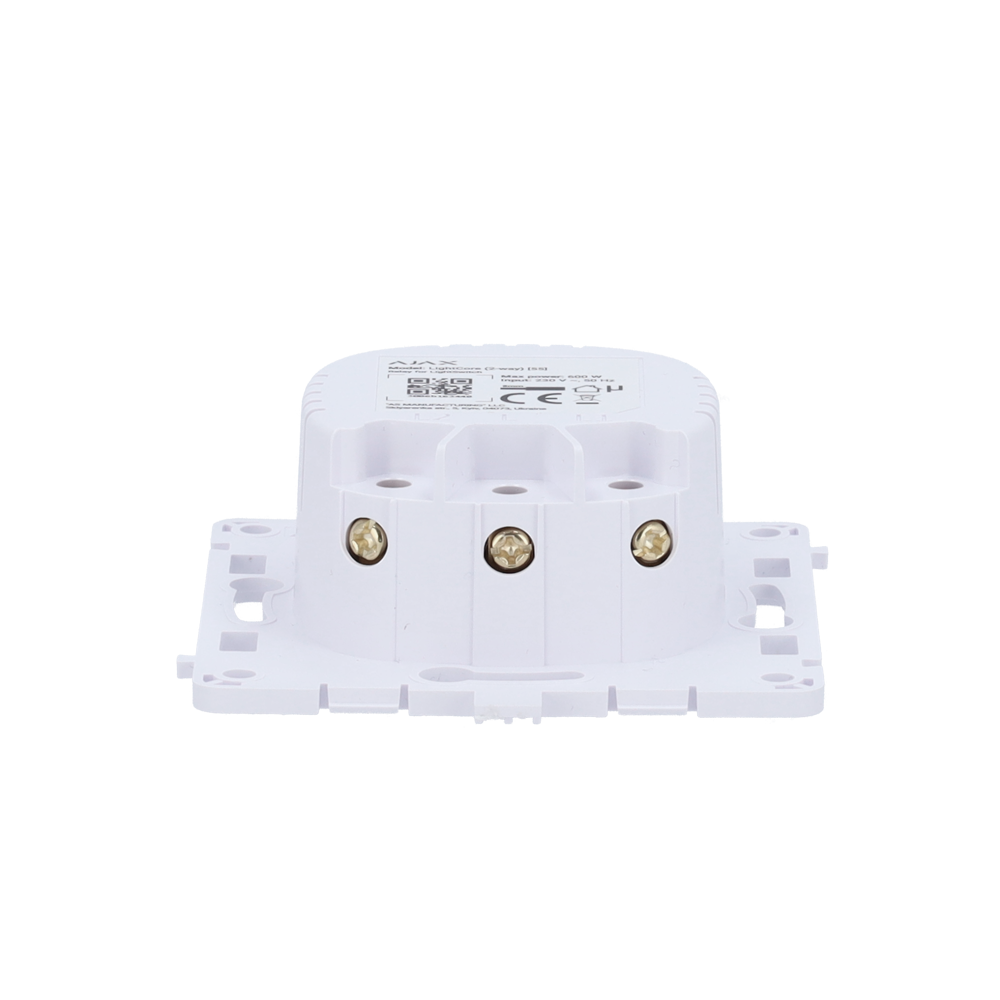

Terminals	1 terminal for power phase cable and 2 terminals for power cable for two lighting fixtures or other load (without neutral cable)

Contents

Relay for intelligent switchable light switch

Installation kit (includes one capacitor)

User instructions
