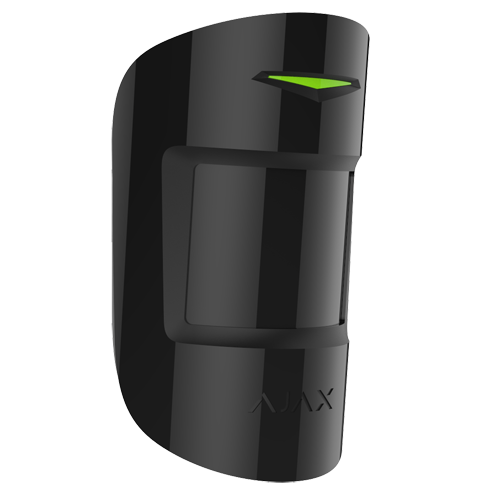

AJ-MOTIONPROTECT-B

PIR detector - Pet proof - Grade 2 approved - PIR bidirectional detector - 868MHz Jeweller Wireless - Detection Range 12 m

Availability

2-5 Days

Description

Ajax

Pet immune volumetric PIR detector

Bidirectional

Grade 2 approved

868MHz Jeweller Wireless

Internal antenna range open space 1700 m

Motion detection indicator

Detection: Range 12m / H: 88.5º / V: 80º

Tamper-resistant opening

Pet immunity ≤ 20 kg, ≤ 50 cm

Power supply 1 battery CR123A 3.0 V (estimated duration 7 years)

Interior use

Includes mounting bracket

Black colour

Specifications

Brand	Ajax
Technology	PIR
Security grade	Grade 2
PIR lens	24 zones and 6 planes
Detection range	12 m / H: 88.5º / V: 80º / Installation 2.4 m
Frequency	868 MHz Jeweller
Transmission distance	≤ 1700 m in open space
Pet immunity	≤ 20 kg, ≤ 50 cm
Anti-masking	No
Sensitivity	Adjustable. 3 levels (low, medium and high)
LEDs indication	Alarm, tamper, signal
Battery	1 battery CR123A 3.0 V (approximate life time 7 years)
Temp. operation	0º C ~ 50º C
Housing material	ABS plastic
Dimensions (without bracket)	110 (H) x 65 (W) x 50 (D) mm

Contents

Indoor PIR Detector

Instructions Manual

Mounting material
