Contents

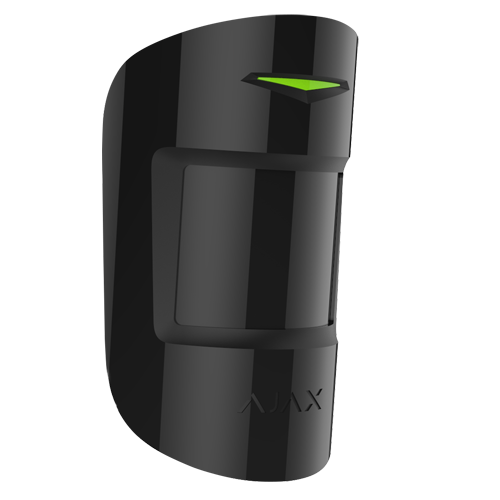

Indoor PIR Detector
Instructions Manual
Mounting material
AJ-MOTIONPROTECTPLUS-B
PIR detector with double technology - Pet proof - Grade 2 approved - 1 x infrared PIR, 1 x Microwave - 868MHz Jeweller Wireless - Detection Range 12 m
Description
Ajax
PIR volumetric detector, pet immune, double technology
Bidirectional
868MHz Jeweller Wireless
Double technology: 1 IR, 1 microwaves
Internal antenna range open space 1200 m
Motion detection indicator
Detection: Range 12m / H: 88.5º / V: 80º
Tamper-resistant opening
Pet immunity ≤ 20 kg and ≤ 50 cm
Power supply 1 battery CR123A 3.0 V (estimated duration 5 years)
Interior use
Includes mounting bracket
Black colour
Specifications
| Brand | Ajax |
| Technology | PIR and microwave sensor |
| PIR lens | 24 zones and 6 planes |
| Detection range | 12 m / H: 88.5º / V: 80º / Installation 2.4 m |
| Frequency | 868 MHz Jeweller |
| Transmission distance | ≤ 1200 m in open space |
| Pet immunity | ≤ 20 kg, ≤ 50 cm |
| Anti-masking | No |
| Sensitivity | Adjustable. 3 levels (low, medium and high) |
| LEDs indication | Alarm, tamper, signal |
| Battery | 1 battery CR123A 3.0 V (approximate life time 5 years) |
| Temp. operation | 0º C ~ 50º C |
| Housing material | ABS plastic |
| Dimensions (without bracket) | 110 (H) x 65 (W) x 50 (D) mm |
