AJ-OUTDOORPROTECT-W

AJ-OUTDOORPROTECT-W

Ajax Outdoor PIR Detector - 868MHz Jeweller Wireless - Double PIR / Detection 15 m - Antimasking / Pet immunity - Reach in open space 1200 m - Weatherproof IP54
Description

Ajax

Double PIR Pet Immune Outdoor Detector

Bidirectional

868MHz Jeweller Wireless

Double PIR with antimasking

Detection: Range 15 m / 90º

Motion detection indicator

Tamper-resistant opening

Range in open space 1200 m

Immunity to pets ≤ 80 cm

Power supply 2 battery CR123A 3.0 V (estimated duration 5 years)

Outdoor use

Degree of protection IP54

Includes mounting bracket

White colour

Specifications
Brand Ajax
Technology Double volumetric PIR
PIR lens 16 zones

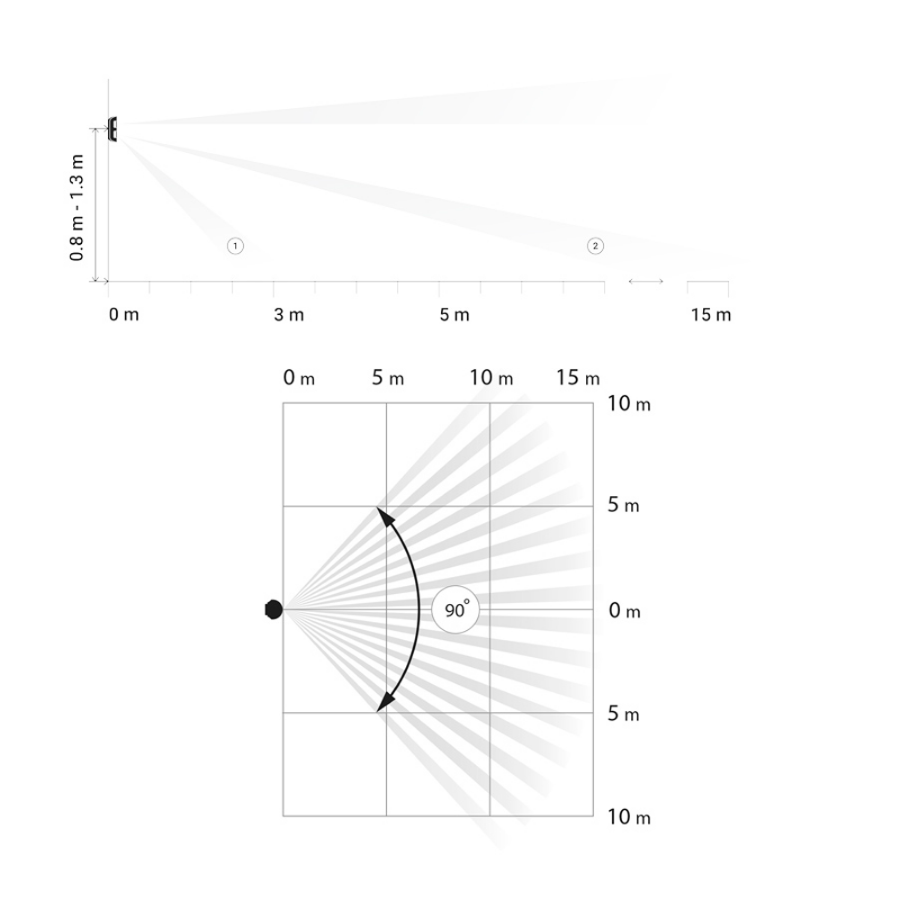

Detection range 15 m / 90º / Installation 0.8~1.3 m
Frequency 868 MHz Jeweller
Transmission distance ≤ 1200 m in open space
Pet immunity Available ≤ 80 cm
Anti-masking Available
Sensitivity Adjustable. 3 levels (high, medium, low)
Tamper-resistant opening Available
LEDs indication Alarm, tamper, signal
Power 2 batteries CR123A 3.0 V (approximate life time 5 years)
Temp. operation -25 ºC ~ 60 ºC
Degree of protection IP54
Dimensions 184 (H) x 70 (W) x 60 (D) mm
Contents

Outdoor PIR Detector

Instructions Manual

Mounting material
