Integration module
Instructions Manual

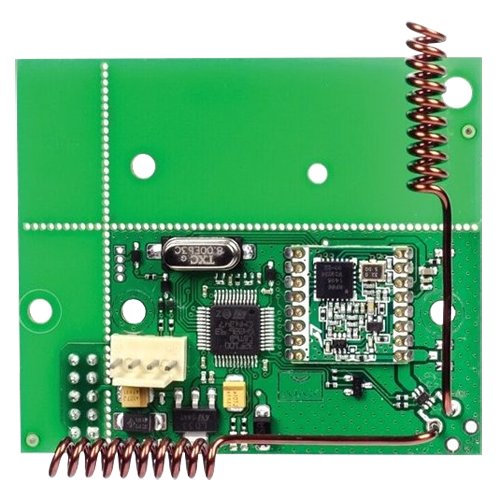

AJ-UARTBRIDGE
Integration module - Ajax devices with smarthome central - Up to 85 Ajax devices - Reach up to 2 km - Serial communication (UART interface) - Power supply DC 5V
Description
The AJ-UARTBRIDGE device is an integration module for Ajax devices (motion detectors, magnetic contacts, remote controls etc.) with smarthome systems via UART interface. It is possible to add up to 85 Ajax devices wirelessly to this module thanks to the radio protocol Jeweller 868 MHz. For communication with the third party panel, communication via UART interface is used, through which the information from the Ajax devices will be sent to the system.
Communication between the AJ-UARTBRIDGE module and Ajax devices has a range of up to 2 kilometers in open field conditions without obstacles.
Specifications
| Brand | Ajax |
| Module inputs | Up to 85 Ajax devices |
| Transmission distance | Up to 2 km in open space |
| Transmission frequency | 868 MHz Jeweller |
| Compatibility | MotionProtect, MotionProtect Plus, CombiProtect, DoorProtect, FireProtect, FireProtect Plus, LeaksProtect, SpaceControl and GlassProtect |
| Power | DC 5 V |
| Temp. operation | -10º C ~ +40º C |
| Dimensions | 64 (H) x 55 (W) x 13 (D)mm |
