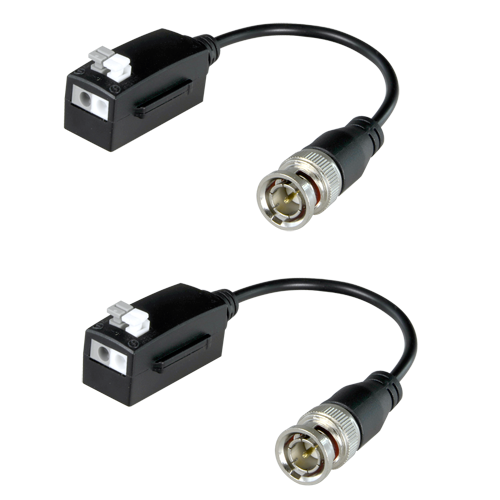

- - Pair of passive transceivers HD PoC
BA612P-POC
5,46 €
6,07 €
6,07 €
SAFIRE UTP passive transceiver - Optimised for HDTVI, HDCVI and AHD - 1 video channel, PoC - Passive, connector of 2 pins - Maximum range: 450 m (TVI / 720p) - 2 units
Description
Passive PoC transceiver for twisted pair video, 2 units for transmission and reception, specific for high definition analog (HD).
Optimized for the transmission of the video signal of 1 HDTV analog HDTV / HDCVI / AHD / CVBS. It has BNC male connector and cable insertion terminal by pressure, two-pin connector.
The maximum length between the end that connects to the camera and the end that connects to the video output is :
- HDTVI 720p - 450 m
- HDTVI 1080p - 300 m
- HDCVI 720p - 250 m
- HDCVI 1080p - 250 m
- AHD 720p - 250 m
- AHD 1080p - 250 m
- CVBS - 250 m
Specifications
| Brand | Hikvision |
| Number of channels | 1 channel |
| Power | Does not require (Passive), PoC |
| Video Input/Output | BNC (male) |
| Transmission distance | HDTVI 450/300 m (720p/1080p), HDCVI 250/250 m (720p/1080p)AHD 250/250 m (720p/1080p), CVBS 250 m, 50/100 m (at, af PoC) |
| Twisted pair connector | Two pin connector |
| Crosstalk | 60 dB |
| Input impedance | 75 Ohm |
| Output Impedance | 100 Ohm |
| Cable category | UTP category 5/6 |
