Contents
- Magnetic contact
- Installation material
- User instructions

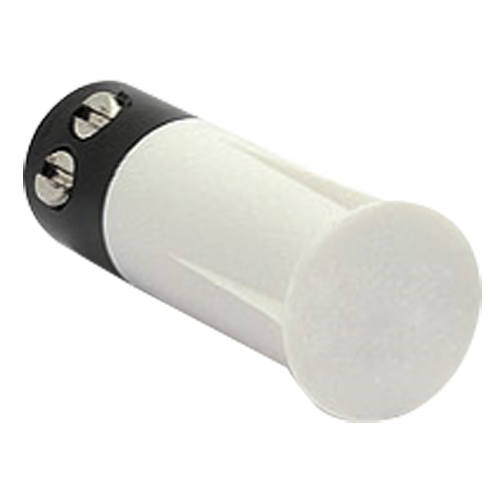

CLR-TW-T-W
14,99 €
16,65 €
16,65 €
High power magnetic contact TSEC - The latest technology in intrusion - Magnasphere technology - Magnetic anti-masking - 2 Thread system - Requires adapter and compatible magnet - Grade 3 approved
Description
- TSEC
- Magnetic contact
- Magnasphere Technology
- Magnetic anti-masking
- High resistance to mechanical and electrical shocks
- 2 Thread system
- Requires adapter and magnet to work correctly
- Grade 3 approved
Specifications
| Security grade | Grade 3 |
| Environmental class | Class 2 |
| Technology | Magnasphere |
| Power | High power |
| Maximum detection distance | With CRL-MGA: In wood 10 mm With CRL-AL: On ferrous/non ferrous materials: 5/8 mm With CRL-BL: In ferrous materials 6 mm |
| Material | Plastic |
| Cable | Connector for 2 cables |
| Magnet | Neodymium |
| Resistance to mechanical shocks | Up to 100G |
| Electrical parameters | 30 VDC max, 250 mA, 0.25W |
| Dimensions | 19 x Ø11 mm |
