- 4in1 Box Camera
- User instructions
CV581KW-F4N1
36,27 €
39,00 €
39,00 €

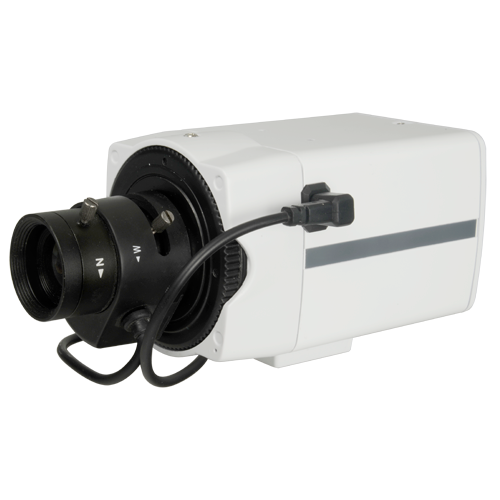

Box Camera HDTVI, HDCVI, AHD & Analogue - 1080p (25 fps) - 1/3" Panasonic© 2.0 Megapixel CMOS - Supports manual lenses and DC - Minimum illumination 0.01 Lux - OSD menu with real WDR
Description
- Box Camera HDTVI, HDCVI, AHD & Analogue
- ULTRA Range
- 1/3" Panasonic© 2.0 Megapixel
- MN34227+EN773E
- HD 1080P (1920x1080)
- Output 4in1
- Accepts manual lens and DC iris (not included)
- Colour 0.1 Lux / B&W 0.01 Lux
- WDR (12FPS)
- SenseUp
- 3DNR
- ATR
- IR Cut
Specifications
| Range | 1080p ULTRA |
| Image sensor | 1/3" Panasonic© 2.0 Megapixel (model MN34227) |
| DSP | EN773E |
| Resolution | HD 1080p (1920x1080) at 25 FPS / CVBS 1000TVL |
| Video output | 1 x BNC switchable between HDTVI / HDCVI / AHD / CVBS |
| Minimum illumination | 0.1 Lux (Colour), 0.01 Lux (B/W) |
| Basic functions | OSD menu, Day/Night with IR-CUT (ICR) |
| Configurable OSD functions | WDR, Shutter control, SenseUp, ACE, AE, 3D-NR, AWB, AGC, Mask, MD, Defog |
| Lens | Manual / Auto Iris (DC); mount for lenses type C or CS (not included) |
| Power | DC 12 V / 1000 mA max. |
| Degree of protection | Suitable for interior or installed in housing for exterior |
| Temp. operation | -10º C ~ +50º C |
| Dimensions | 110 (D) x 65 (W) x 77 (H) mm |
| Weight | 300 g |
