Remote control terminal
Battery cables
Fusible

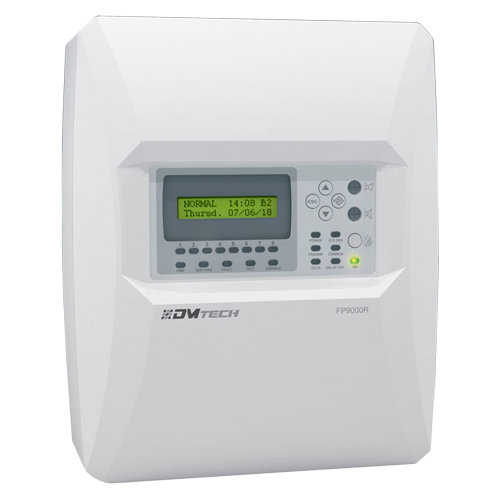

DMT-FP9000R
DMTECH Control Repeater - 2 Siren output - 2 alarm and fault outputs and 2 configurable relay outputs - Allows up to 8 stations to be connected - Necessary module DMT-M9000-485 - LCD screen and advanced programming menu
Description
DMTECH
Remote control terminal
Built-in keypad with mute, view, enable/disable, test buttons, resound, system reset
Allows to see all the information of the installation
Up to 8 stations connected
Necessary module DMT-M9000-485
230V AC operating voltage
Capacity for 2 12V batteries
Specifications
| Primary power supply | Switching source 187-252V AC 50-60 Hz 65W max. |
| Backup power supply | 2 batteries 12VDC (up to 7.2 Ah). Ensures minimum 72 hours duration. |
| Available languages | English, French, Spanish, Turkish, Romanian and Russian. |
| Siren outputs | 2 siren outputs 24VDC. Independent and monitored open collector outputs |
| Relay outputs | 4 Relay outputs: [VAR%] Alarm output, 1 Fault output and 1 configurable relay outputs. All support 30VDC 3A max. |
| End of line resistance | Areas fully monitored by end-of-line resistance (4.7K) |
| Auxiliary Output Voltage | 24VDC. Protected by resettable electronic fuse 1.85A |
| Protection Index | IP30 |
| Temperature | -5ºC~+45ºC |
| Material and colour | ABS, colour: White |
| Dimensions | 310 x 240 x 80 mm |
| Weight | 1,3Kg |
| Recommended cable | Fire cable with a minimum section of 1.0mm (18AWG). |
