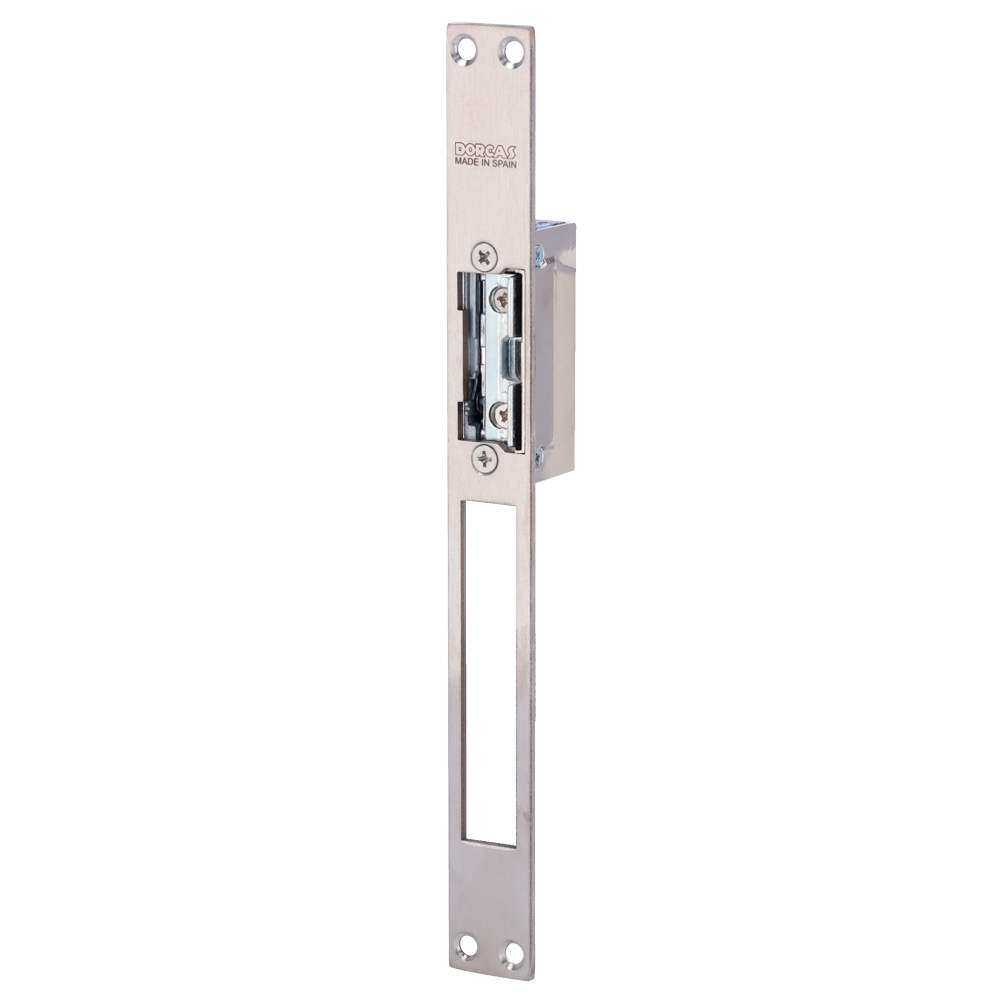

DR-99NDF-TOP/YMX
33,68 €
37,42 €
37,42 €
Dorcas electric strikes - For single door : Adjustable radial bolt - Fail Secure (NO) aperture mode - Retention force 330 kg - AC/DC power source 10-24V - Recessed mounting : Socket and free step
Description
Dorcas
Electrical door openers
Fail Secure operation (NO)
Symmetrical and reversible
Narrow bottom
Installation without the need to cut into the front panel or door cutout
With lock socket
Stainless steel
Load resistance 330 kg
10-24 VAC/VDC
EN Certification 14846
Specifications
| Brand | Dorcas |
| Model | DR-99NDF-TOP/YSX |
| Mounting | Built-in |
| Opening mode | Fail Secure (NO) |
| Functions | Free passage flap, adjustable radial latch and lock socket Lid with anti-friction system and ramp with latch guide (no need to cut into the front or cutout in the door) |
| Retention force | 330 kg |
| Power | AC/DC 10-24 V / 500 mA max. |
| Material | Stainless steel |
| Dimensions | 25 (W) x 250 (H) x 28.5 (D) mm |
| Weight | 400 g |
