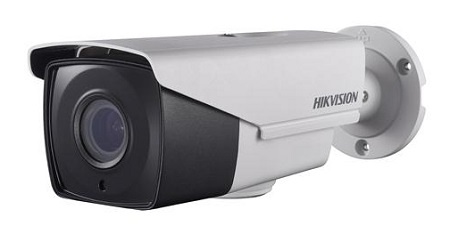

DS-2CC12D9T-AIT3ZE

Camera
Image Sensor: | 2.0 megapixel progressive scan CMOS
Signal System: | PAL/NTSC
Effective Resolution: | 1920 (H) ×1080 (V)
Frame Rate: | PAL: 1080p@25fps
                       NTSC: 1080p@30fps
Min. Illumination: | 0.003 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time: | PAL: 1/25 s to 1/50,000 s
                        NTSC: 1/30 s to 1/50,000 s
Slow Shutter: | Max.: 30 times
Lens: | 2.8 mm to 12 mm
Horizontal Field of View: | 32.1°to 98°
Lens Mount: | Φ 14
Day & Night: | IR cut filter
Angle Adjustment (Bracket): | Pan: 0°to 360°, Tilt: 0°to 90°, Rotate: 0°to 360°
Synchronization: | Internal synchronization
WDR: | > 120 dB
Menu
AGC: | Support
Day/Night Mode: | Auto/Color/BW (White & Black)
White Balance: | ATW/AWC-SET/MANUAL
Privacy Mask: | ON/OFF, 8 programmable privacy masks
Motion: | 4 programmable motion areas
Backlight Compensation: | WDR/BLC/HLC/OFF
2D & 3D DNR: | ON/OFF
Voltage Detection: | Support
Functions: | Defog, Mirror, Defective Pixel Correction, Sharpness, Camera Title
Scene: | Indoor/outdoor/indoor1/low light
Interface
Video Output: | 1 HD analog output/1 Vp-p composite output (75Ω/BNC)
Alarm: | 1 alarm in/out
General
Operating Conditions: | -40°C to 60°C (-40°F to 140°F),
                                           Humidity: 90% or less (no condensation)
Power Supply: | 24 V AC/12 V DC ±30%/PoC.at
Ingress Protection: | IP67
IR Distance: | Up to 40 m
Power Consumption: | Max.: 7.5 W
Communication: | Up the coax, Protocol: HIKVISION-C
Dimensions: | 92 mm × 85.3 mm × 269.6 mm (3.62" × 3.36" × 10.61")
Weight: | Approx. 700 g (1.54 lb.)

Nota: Alimentador não incluído.
