DS-PD501PC12
76,28 €
84,75 €
84,75 €

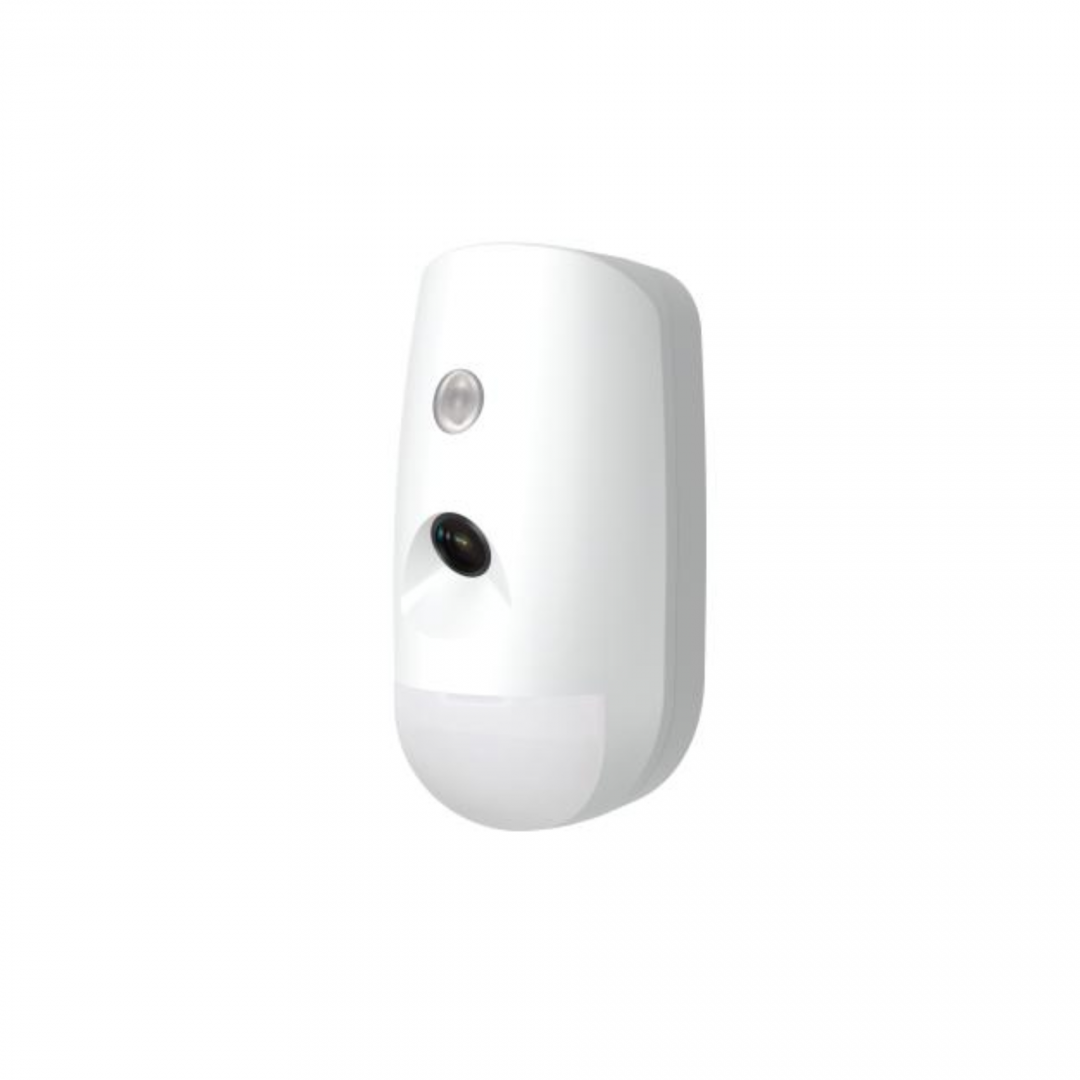

Modelo DS-PD501PC12, detector PIR com câmera, alcance de detecção de 12 m a 90°, imunidade a animais de estimação de até 24 kg, dimensões 73 × 130,5 × 56,7 mm, peso 195 g, alimentação de 9–16 V CC.
Description
|
General |
||
|
Application scenario |
Indoor | |
|
Operation temperature |
-10°C to 40°C (14°F to 104°F) | |
|
Operation humidity |
10% ~ 90% noncondensing | |
|
Dimension (W×H×D) |
73 mm × 130.5 mm × 56.7 mm | |
|
Weight |
195 g | |
|
Bracket |
Optional Wall & Ceiling Accessory | |
|
Installation method |
Wall mount and Ceiling mount with bracket | |
|
Installation height |
1.8 m ~ 2.4 m, 2.1 m typical | |
|
Communication |
||
|
Transmission technology |
2-way encrypted communication, half-duplex, asynchronous, support bus-extender | |
|
Encryption |
AES-128 | |
|
Detection |
||
|
Detection method |
Passive infrared | |
|
Detection range |
12 m | |
|
Detection angle |
90° | |
|
Detection zones |
84 | |
|
Detectable speed |
0.3 ~ 2 m/s | |
|
Sensitivity |
Auto, High, Low | |
|
Pet immunity |
24 kg | |
|
White light filter |
6500 lux | |
|
Digital processing |
Support | |
|
Sealed optics |
Support | |
|
Video |
||
|
Field angle |
109°(H), 60°(V) | |
|
Day/Night mode |
Color / Black&White | |
|
Fill light |
Infrared Light | |
|
IR range |
12 m | |
|
Resolution |
1920×1080 1280×720 640×480 |
|
|
Image type |
JPEG | |
|
Electrical |
||
|
Power supply |
9 ~ 16 V ⎓ | |
|
Typical voltage |
12 V ⎓ | |
|
Power consumption |
Maximum: 100 mA @12VDC Quiescent: 70 mA @12VDC |
|
|
Hardware |
||
|
Tamper-Proof |
Front and Rear | |
|
Display |
||
|
LED indicator |
Blue (Alarm), Orange (Fault) | |
