Contents

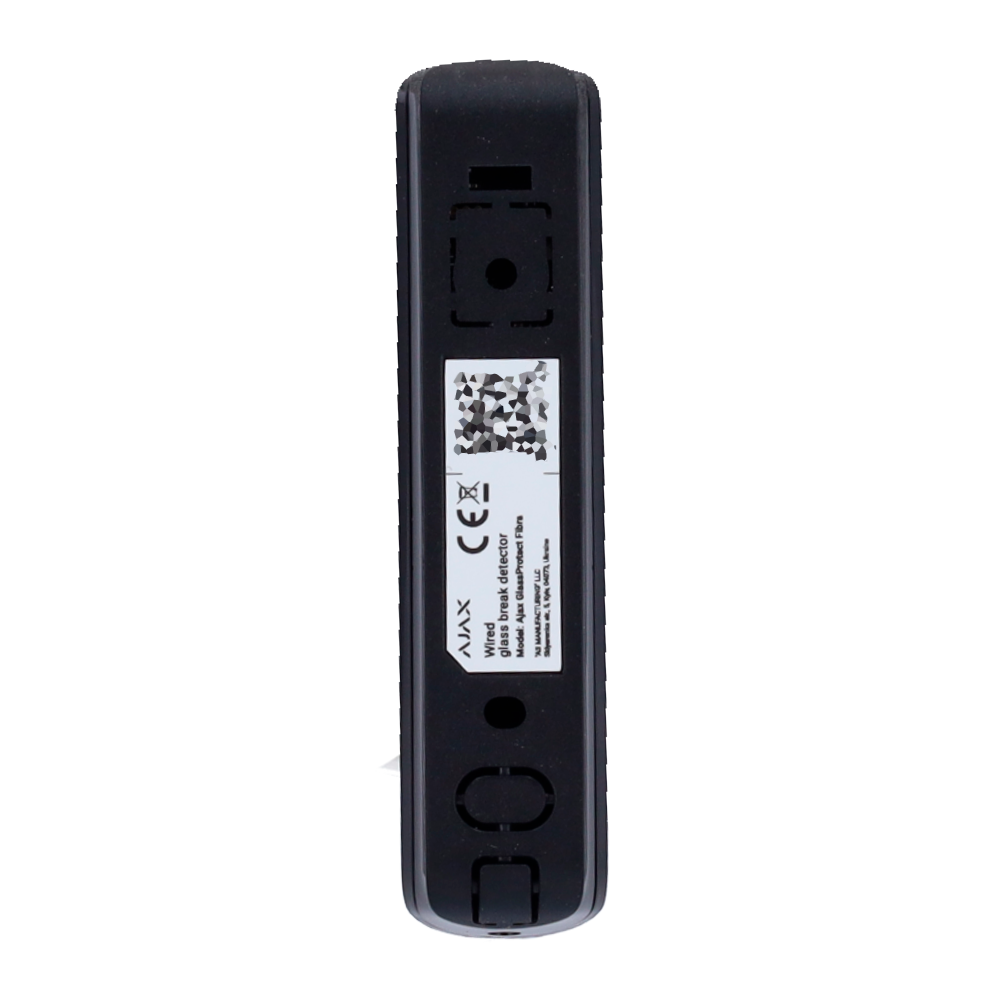

Glass break detector for interior
Instructions Manual
Mounting material
FIBRA-GLASSPROTECT-B
Detector de rotura de cristal - Protocolo Fibra - Certificado grado 2 - Indicador LED - Rango de detección 9 m - 1 entrada adicional para sensor cableado NC
Description
Ajax Fibra
Glass Breakage Detector - Bidirectional
Grade 2 approved

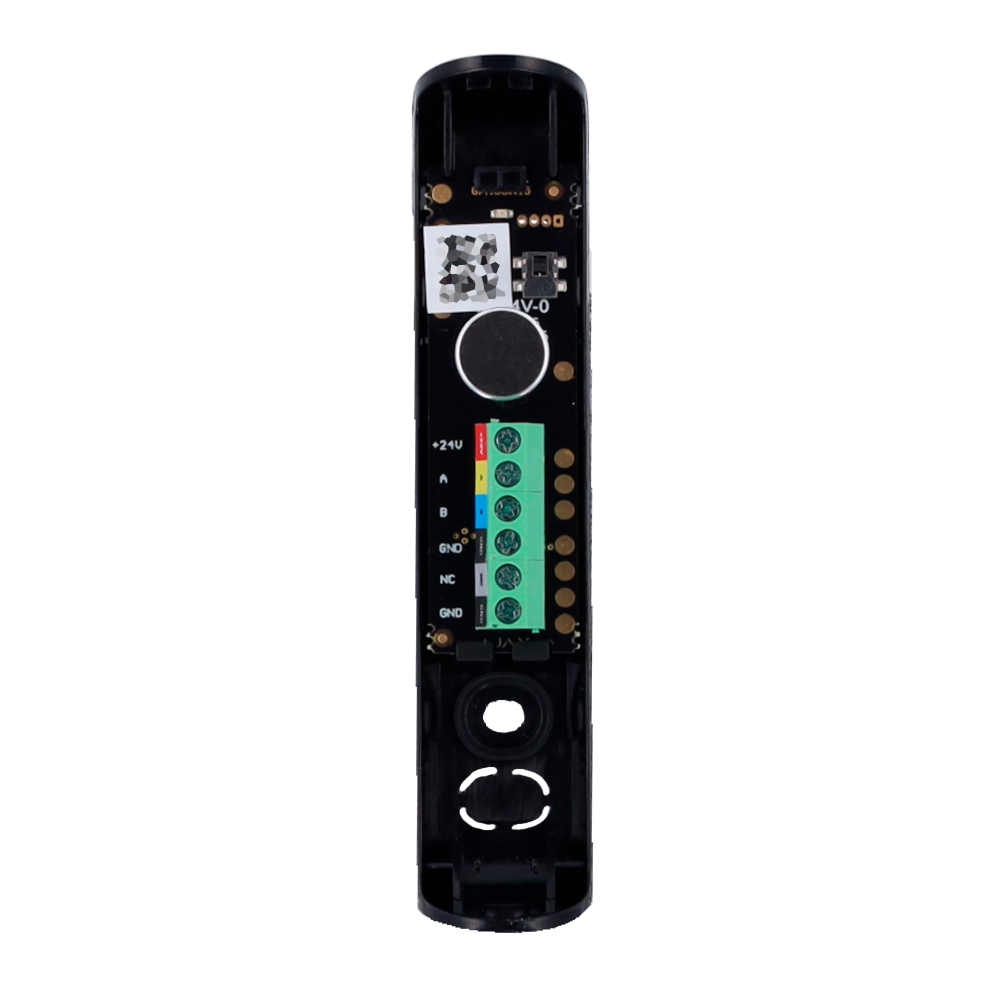

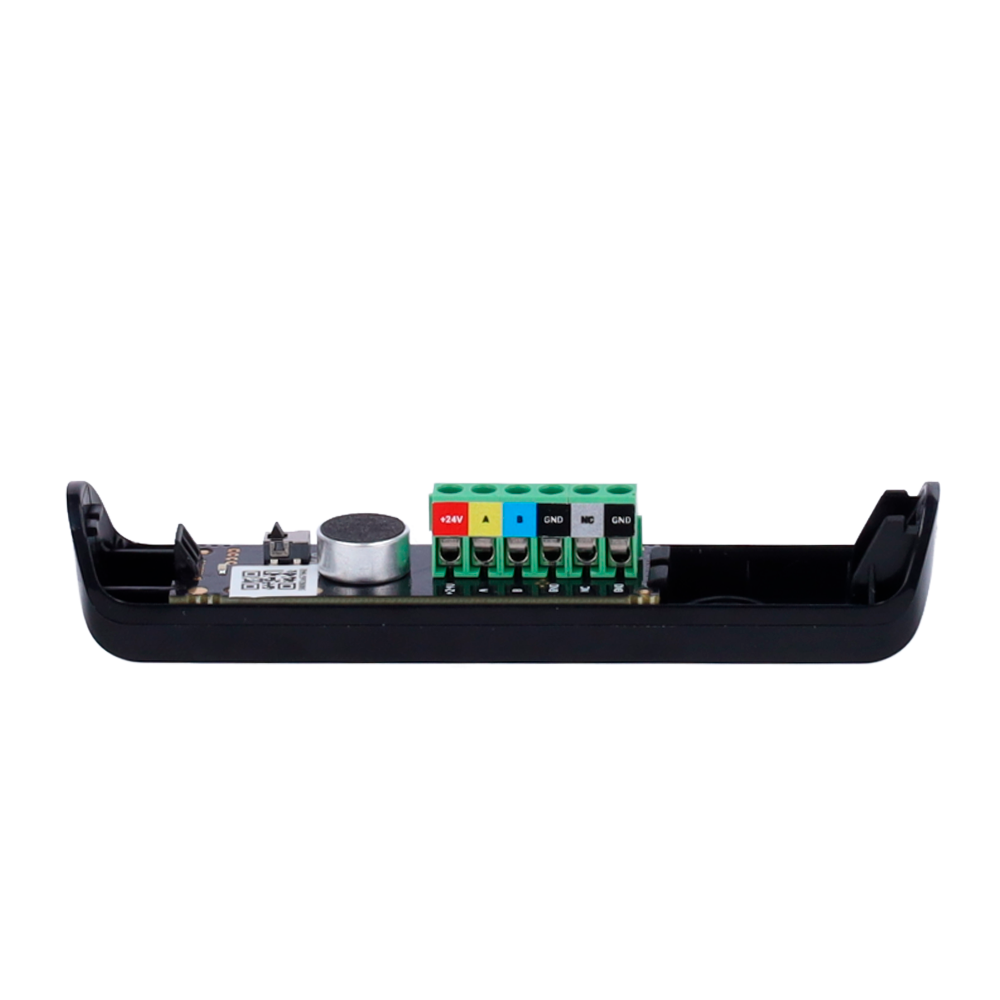

Connection terminal for 4 wires
Power 24VDC
Detection angle 180º
Breakage detection indicator
Allows connection of cabled sensors
Tamper-resistant opening
Interior use
Includes mounting bracket
Black colour
Specifications
| Brand | Ajax Fibra |
| Technology | Microphonic sensor (Electret) |
| Security grade | Grade 2 |
| PIR detection range | 9 m / H:180º |
| Transmission distance | Up to 2000 m (Recommended): twisted pair U/UTP cat. 5) |
| Bus connection | 4 wire cable |
| Sensitivity | Adjustable. 3 levels (low, medium and high) |
| LEDs indication | Alarm, tamper, signal |
| Power | 24 V DC (Consumption up to 45 µA) |
| Temp. operation | -10º C ~ 40º C |
| Housing material | ABS plastic |
| Dimensions | 90,5 (Al) × 21 (W) × 18,5 (Fo) mm |
