Contents
- Infrared barrier
- 4 reflective panels
- Configuration Manual
- Installation material

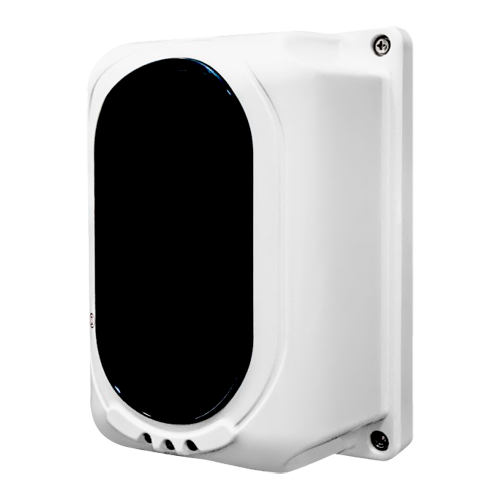

FIREBEAM-100M
160,16 €
172,22 €
172,22 €
Infrared fire barrier - Range up to 100 metres - Display and laser pointer for easy installation - Opening of 14 meters (7 on each side) - Adjustable sensitivity - Certificate EN54-12:2015
Description
- Conventional Infrared Fire Barrier
- Transmission distance up to 100m
- Opening up to 14 meters (7m on each side)
- Reflective panels
- Display and DIP Switch for configuration
- Laser pointer for the alignment process
- Automatic compensation
- Adjustable sensitivity
- Fire and fault output
- Certified EN54-12:2015
Specifications
| Certification | LPCB / CE-CPR EN54-12:2015 BS 5839 Part1:2017 |
| Coverage distance | 1 Mode: 8 - 20 m (Need 1 reflective panel) 2 Mode: 20 - 40 m (Need 1 reflective panel) 3 Mode: 40 - 70 m (Need 4 reflective panels) 4 Mode: 70 - 100 m (Need 4 reflective panels) |
| Sensitivity | Level 1: 2.6dB (High Sensitivity) Level 2: 3.8dB (Average sensitivity) Level 3: 5.8dB (Low Sensitivity) |
| Configuration | Via DIP Switch |
| Alignment Guide | Laser pointer |
| Indications | Via Display for configuration and LED for faults (Red: fire / Yellow: failure / Green: Aligned) |
| Reset time | Less than 2 seconds without power |
| Relay | 2 relays (fire and fault) NO/NC, 30VDC/2A max. |
| Power | 20-28 VDC |
| Consumption | Standby: 23mA Alarm: 33mA |
| Dimensions | L:190.87 x W:126.87 x H:91.96 mm |
| Weight | 440g |
| Material | ABS plastic |
| Degree of protection | IP30 |
| Temperature range | -10~55ºC |
| Humidity | 0~95% relative humidity, non-condensing |
