G5PLUS

129,17 €
138,89 €

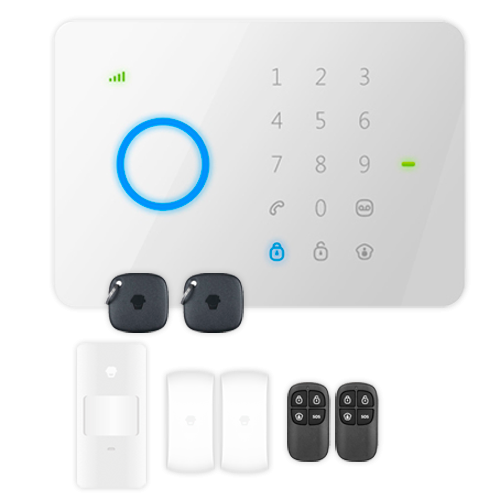

Domestic alarm kit - Touch panel with GSM module - Sending alerts by SMS and phonecall - Volumetric PIR Detector - 2 Magnetic door/window contacts - Includes 2 remote controls and 2 RFID cards
Description

Complete wireless alarm system, with communication of messages via phone card. You only need to have GSM coverage to keep an eye on your home or business. And without any fee or monthly subscription, you will receive notice alerts on your mobile phone, sent directly by the alarm. Moreover, being completely wireless, there is no need to connect any equipment with cables.

This great kit has everything you need to install an alarm by yourself to alert your mobile phone about any attempt of theft or intrusion. It consists of a control panel, a PIR motion sensor, two door/window opening detectors, two remote controls and two RFID proximity cards.

You can furthermore download the manufacturer's application for free, to configure, arm and disarm the system in an easy way with your iPhone or Android smartphone.

  • Made in methacrylate and front touch with keypad
  • GSM module, you only have to insert a GSM phone card from any operator
  • The control panel will call or send an SMS in case of any event
  • Inhibition detection function
  • Total armed and partial armed buttons
  • Emergency button, to call a preset number
  • Microphone and speaker, designed to verify via audio what is happening on your property
  • Button to record a voice message that will be stored in the system
  • Internal siren, with configurable volume
  • RFID proximity card reader
  • Attractive design, will not break the aesthetics of your home or business
  • Power supply DC 12 V included, to power the system
  • 3.7V Backup battery in case of loss of mains power
Specifications

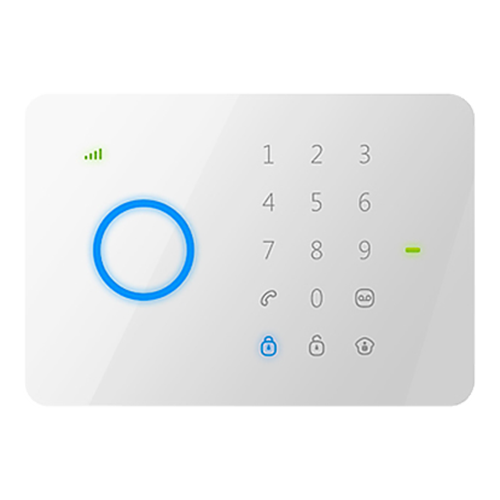

Control Panel

Model G5PLUS
GSM working frequency 850/900/1800/1900 MHz
Power supply input AC 110V-240 V, 50/60 Hz
Power supply output DC 12 V 500 mA, 6 Wh
Backup battery Lithium Battery: 3.7 V 700 mAh
Internal siren 95 dB (Maximum volume)
Frequency 433 MHz (± 75 KHz) with inhibition detection
Maximum number of accessories 10 remote controls, 50 wireless sensors, 50 TAGs
Housing material ABS plastic
Temp. operation -10º C ~ 55º C
Relative humidity ≤ 80% (without condensation)
Dimensions 132 (H) x 188 (W) x 26 (D) mm

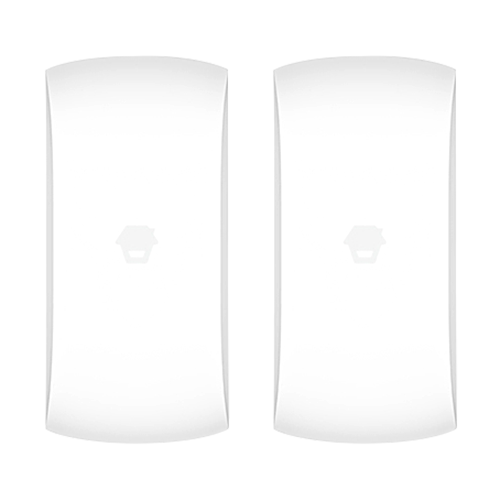

Magnetic Contact

Power 1 AA battery of 1,5 V
Transmission distance ≤ 80 m (in open space)
Frequency 433 MHz (± 75 KHz)
Housing material ABS plastic
Relative humidity ≤ 80% (without condensation)
Transmitter dimensions 71 (H) x 34 (W) x 17,5 (D) mm
Magnet dimensions 51 (H) x 12 (W) x 13,5 (D) mm

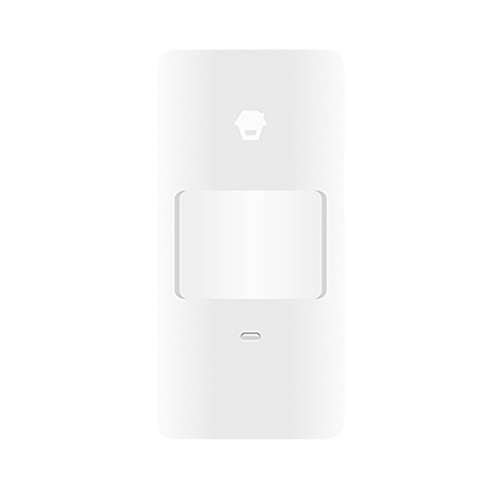

Pir Detector

Power 2 AA batteries of 1,5 V
Detection range 8 m / 110º
Transmission distance ≤ 80 m (in open space)
Frequency 433 MHz (± 75 KHz)
Housing material ABS plastic
Temp. operation -10º C ~ 55º C
Relative humidity ≤ 80% (without condensation)
Dimensions (without bracket) 108 (H) x 52 (W) x 36,8 (D) mm
Bracket dimensions 52 (H) x 30 (W) x 26,5 (D) mm
Contents
  • Control panel

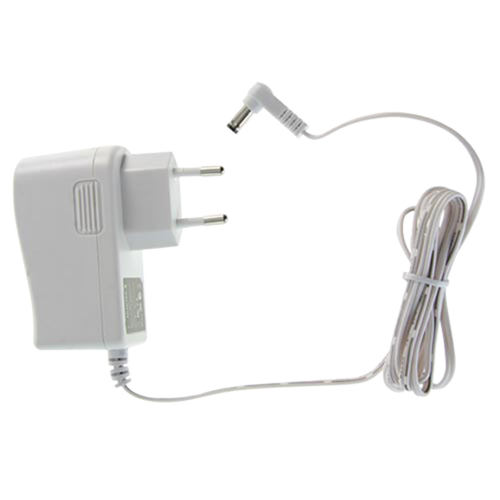

  • Adapter AC/DC 12V / 500mA
  • Wall bracket
  • PIR detector
  • 2 Magnetic Contacts

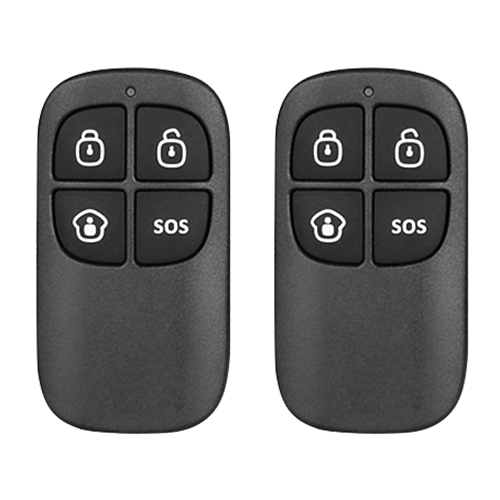

  • 2 Remote controls

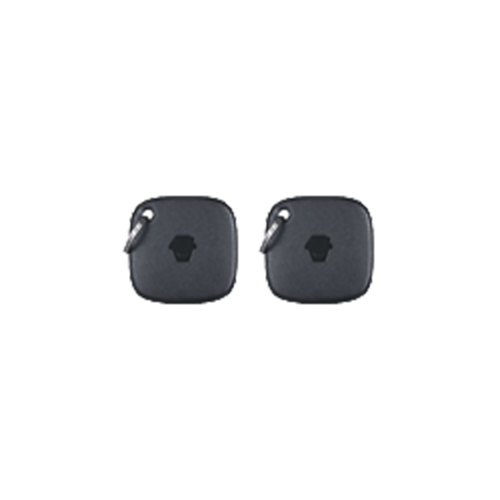

  • 2 proximity keychains
