GJD505

927,68 €
997,51 €

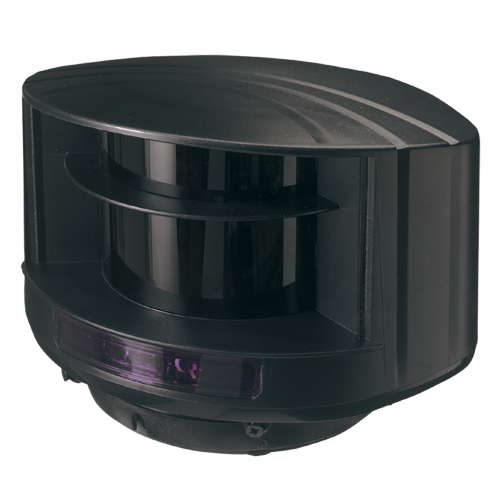

GJD External Laser Detector - Laser technology with curtain-like coverage - Detection range adjustable up to 5 m - High reliability and precision - Power supply 10~35 VDC - Outdoor use

Brand

GJD

Availability

2-5 Days

Questions about this item

Best Price Guarantee

Buy

Description

GJD
Outdoor Laser Detector
Laser curtain coating technology
Adjustable detection range up to 5 x 5 m
Vertical coverage 90º
High reliability and precision
3 beams IR detector
Motion detection indicator
Power supply 10~35 VDC
Outdoor use
Degree of protection IP65

Specifications

Brand	GJD
Technology	Laser Technology
Detection range	Up to 5 x 5 m / 90º laser curtains for alarm and pre-alarm
Minimum target size	Depending on the distance to the detector: 2.1 cm to 3 m / 3.5 cm to 5 m
Response time in detection	20 ms
Emission characteristics	Wavelength: 905 nm (IR laser) / 650 nm (visible red laser during installation)
Tamper-resistant opening	Available
LEDs indication	ON/OFF, Alarm and Fault
Configuration	Configuration by remote control command GJD501
Wired outputs	Alarm and Tamper
Installation	3 visible laser beams to adjust the detection area and self-learning function
Power	10 at 35 VDC
Average consumption	< 5 W
Temp. operation	-30 ºC ~ 60 ºC
Degree of protection	IP65
Covered material	High quality PC/ASA plastic
Dimensions	70 (H) x 93 (W) x 125 (D) mm

Contents

Outdoor laser detector
Instructions Manual
Installation material

GJD505
