Contents
- Control panel
- Adapter AC/DC 12V / 500mA
- 1 PIR Detector
- 2 Remote controls
- 2 Magnetic Contacts
H4PLUS
114,96 €
123,61 €
123,61 €

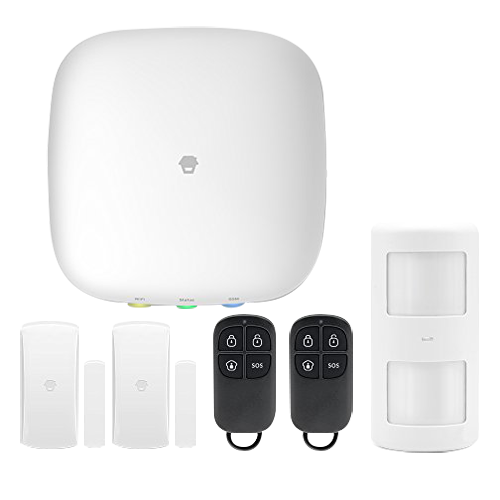

Alarm and Smart Home System - Panel with Wifi module and GSM / GPRS - Sending push notifications and call - 1 Volumetric PIR detector - 2 Magnetic door/window contacts - 2 remote controls
Description
- Chuango
- Smart Home WiFi and GSM / GPRS alarm system
- Wireless
- Kit consisting of:
- Panel (with backup battery and siren)
- 2 remote controls
- 2 magnetic door/window contacts
- 1 PIR motion detector
- 1 power supply
- Supports wireless detectors and accessories 433 directional MHz
- Up to 10 remote controls and 50 wireless sensors
- Armed and disarmed remotely by application
- Smartphone application: H4 Smarthome
Specifications
Control panel | |
| Model | H4PLUS |
| GSM working frequency | 850/900/1800/1900 MHz |
| Wifi | IEEE 802.11b/g/n |
| Power supply input | AC 110V-240 V, 50/60 Hz |
| Power supply output | DC 12 V 500 mA |
| Backup battery | Lithium Battery: 3.7 V 800 mAh (BL-5B) |
| Internal siren | 93 dB (Maximum volume) |
| Directional frequency | 433 MHz |
| Maximum number of accessories | 10 remote controls, 50 wireless sensors |
| Housing material | ABS plastic |
| Temp. operation | 0º C ~ 55º C |
| Relative humidity | ≤ 80% (without condensation) |
| Dimensions | 160 (H) x 160 (W) x 45 (D) mm |
| Bracket dimensions | 80 (H) x 80 (W) x 10 (D) mm |
Remote control | |
| Model | RC-80 |
| Power | 1 battery CR2025 of 3 V |
| Transmission distance | ≤ 80 m (in open space) |
| Frequency | 433 MHz |
| Housing material | ABS plastic |
| Temp. operation | -10º C ~ 55º C |
| Relative humidity | ≤ 80% (without condensation) |
| Dimensions | 135 (H) x 90 (W) x 15 (D) mm |
| Weight | 90 g |
Magnetic contact | |
| Model | DWC-102 |
| Power | 1 batteries AA 1.5 V LR6 (Included) |
| Transmission distance | ≤ 80 m (in open space) |
| Frequency | 433 MHz |
| Housing material | ABS plastic |
| Relative humidity | ≤ 80% (without condensation) |
| Transmitter dimensions | 71 (H) x 34 (W) x 17,5 (D) mm |
| Magnet dimensions | 51 (H) x 12 (W) x 13,5 (D) mm |
PIR detector | |
| Model | PIR-910 |
| Power | 2 batteries AA 1.5 V LR6 (Included) |
| Detection range | 8 m / 110º |
| Transmission distance | ≤ 80 m (in open space) |
| Frequency | 433 MHz |
| Housing material | ABS plastic |
| Temp. operation | -10º C ~ 55º C |
| Relative humidity | ≤ 80% (without condensation) |
| Detector dimensions | 108 (H) x 52 (W) x 37 (D) mm |
| Bracket dimensions | 52 (H) x 30 (W) x 27 (D) mm |
