MC-EMPC
1,99 €
2,14 €
2,14 €

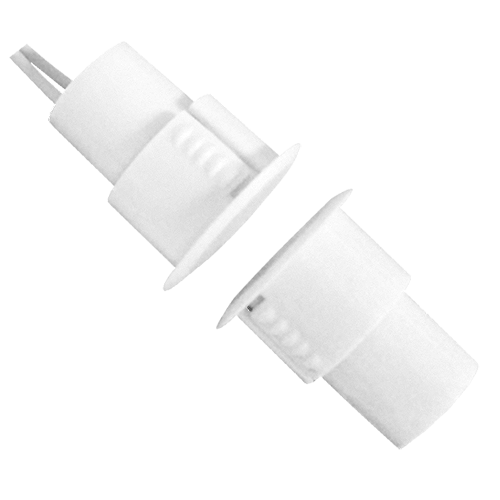

Magnetic contact High power - Suitable for metal installation - Reed Detection Technology - 2-wire connection system - Resistance to mechanical and electrical shocks
Description
- Recessed magnetic detector
- Reed Technology
- High power
- Suitable for metal installation
- Resistance to mechanical and electrical shocks
- 2-wire connection system
Specifications
| Technology | Reed |
| Power | High power |
| Maximum detection distance | Up to 30mm depending on the material where it is installed |
| Material | Plastic |
| Cable | 2 wires |
| Magnet | Neodymium |
| Resistance to mechanical shocks | Up to 18KgS |
| Electrical parameters | 100 VDC/VAC max, 500mA, 10W |
| Dimensions | Detector: 25 x Ø24-19-15 mm Magnet: 25 x Ø24-19-15 mm |
