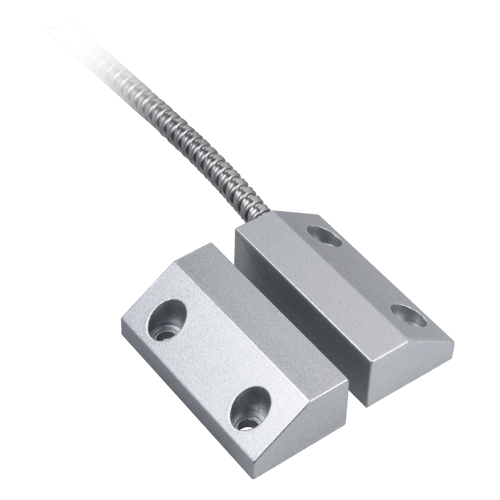

Magnetic contact
User instructions
MC-SMMC-A2
6,37 €
7,08 €
7,08 €
Magnetic contact - Suitable for metal installation - Reed Detection Technology - Connection system of 2 wires protected by metal mesh - Resistance to mechanical and electrical shocks
Description
Magnetic surface detector
Reed Technology
High power
Suitable for metal installation
Resistance to mechanical and electrical shocks
System of 2 wires protected by metal mesh
Specifications
| Technology | Reed |
| Power | High power |
| Maximum detection distance | Up to 40mm depending on the material where it is installed |
| Material | Metallic |
| Cable | 2 wires protected by metal mesh |
| Magnet | Neodymium |
| Resistance to mechanical shocks | Up to 15KgS |
| Electrical parameters | 100 VDC/VAC max, 500mA, 10W |
| Dimensions | Detector: 48 (W) x 24.2 (H) x 15 (D) mm Magnet: 48 (W) x 24.2 (H) x 15 (D) mm |
