Detector

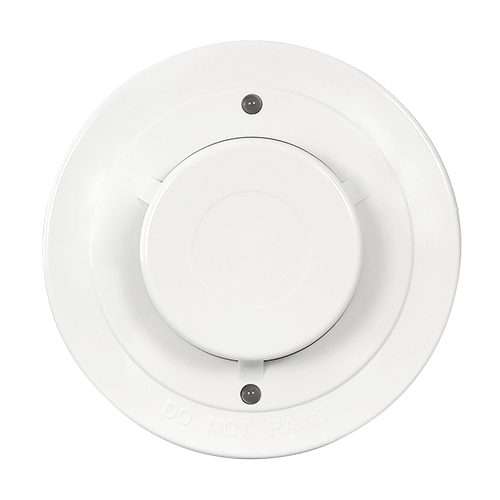

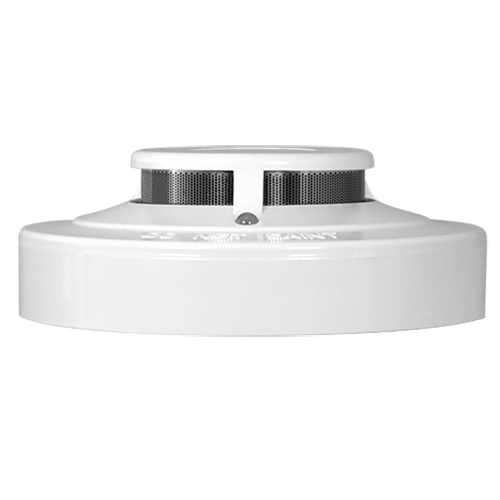

NB-338-2-LED
Conventional optical fire detector - Certificate EN54 part 7 - Double LED alarm to see it from anywhere - Made of ABS material with heat resistance - Base not included - Interchangeable base with the entire wizmart range
Description
Wizmart
Conventional optical fire detector
Certificate EN54 part 7
Low profile
Double LED alarm to see it from anywhere
Alarm and fault warning
Made of ABS material with heat resistance
Base not included
Interchangeable base with the entire wizmart range
Supported bases: Low profile base NB-BASE-W, tube base NB-HBASE-W
Specifications
| Brand and model | Wizmart-NB-338-2-LED |
| Voltage DC | 24V |
| Consumption standby mode (Max.) | 90μA |
| Consumption alarm (Max.) | 70mA |
| Consumption peak | 120μA |
| Initiation time (Max.) | 60 Seconds |
| Consumption allowed (Max.) | 80mA |
| Frequency | 3-5 Secs. |
| Certification | EN54 part 7 |
