- PIR detector for ceiling
- Installation material
OCTOPUSDQ
32,59 €
36,21 €
36,21 €

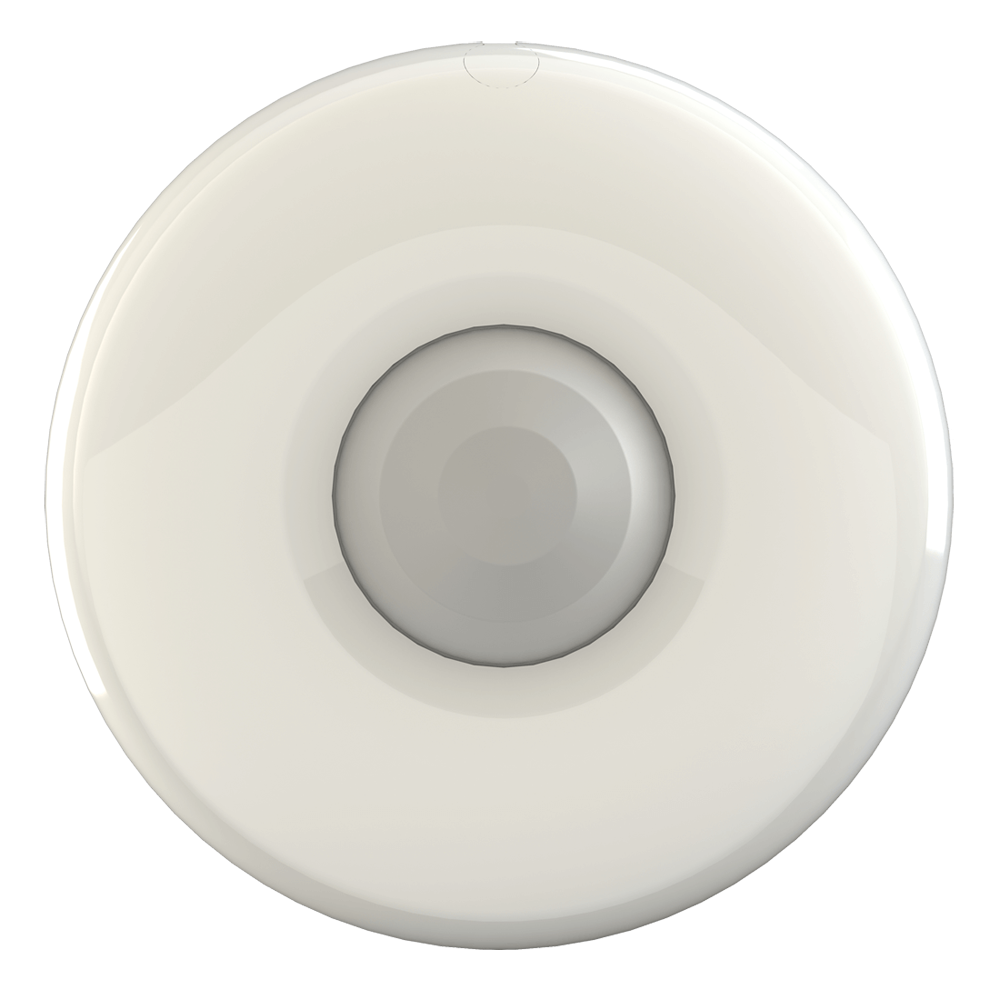

PIR detector for ceiling - For interior use - 1 Dual Infrared Sensor - Wired - Detection range 12 m / 360º - Integrated EOL resister
Description
- Pyronix
- Indoor PIR Detector
- Special to install on the ceiling
- Coverage 12 m / 360º
- Zero angle
- Built-in EOL resistors, selectable by jumpers
- Automatic sensitivity
- Digital temperature compensation
- Sealed optics
- White light filter
- UV Lens protection
Specifications
| Brand | Pyronix |
| Technology | Quad |
| PIR lens | 60 zones and 7 planes |
| RFL resistance | Selectable |
| Detection range | 12 m / 360º for installation height = 4 m 10 m for installation height = 2.4 m |
| Pet immunity | No |
| Masking | No |
| Sensitivity | Adjustable Automatic or High |
| Detection speed | 0.3~3 m/s |
| Power | DC 9~16 V / 15~25 mA @ DC 12 V |
| Temp. operation | -10º C ~ 40º C |
| Dimensions / Weight | 94 (Ø) x 33 (h) mm / 62 g |
