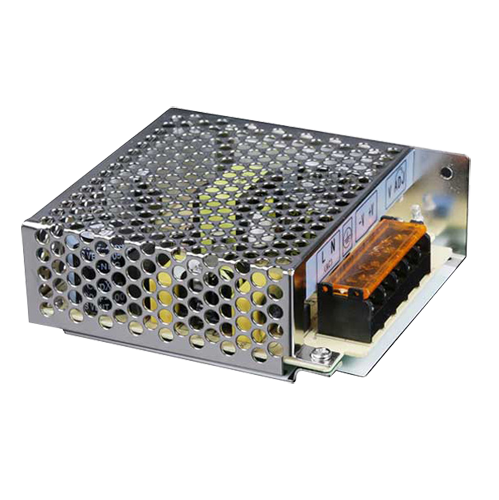

- Power Supply DC 12 V / 5 A
PD-60-12
11,47 €
12,74 €
12,74 €
Switching Power Supply - Input AC 200~240 V - DC Output 12 V / 5 A (60W) - Adjustable output 10.5 ~ 13.5 V - Protected against surges - and current peaks
Description
AC/DC switchable power supply. Precise voltage stabilization. Grid casing for better heat dissipation.
Its input is connected directly to alternating current (AC 200~240 V) and provides continuous DC power 12 V / 5 A. It has an output. The voltage can be adjusted manually in a range between 10.5 V ~ 13.5 V.
It has protection systems against short circuit, overvoltage and current peaks to ensure a problemless performance of the installation.
Specifications
| Input voltage | AC 200~240 V |
| Input frequency | 47~63 Hz |
| Output Voltage | DC 12 V (typically) |
| Output voltage range | Adjustable 10.5 ~ 13.5V |
| Output power | 60W |
| Output current | 5 A |
| Working temperature | -20º C ~ +40º C |
| Dimensions | 105 x 97 x 36 mm |
| Weight | 250 g |
