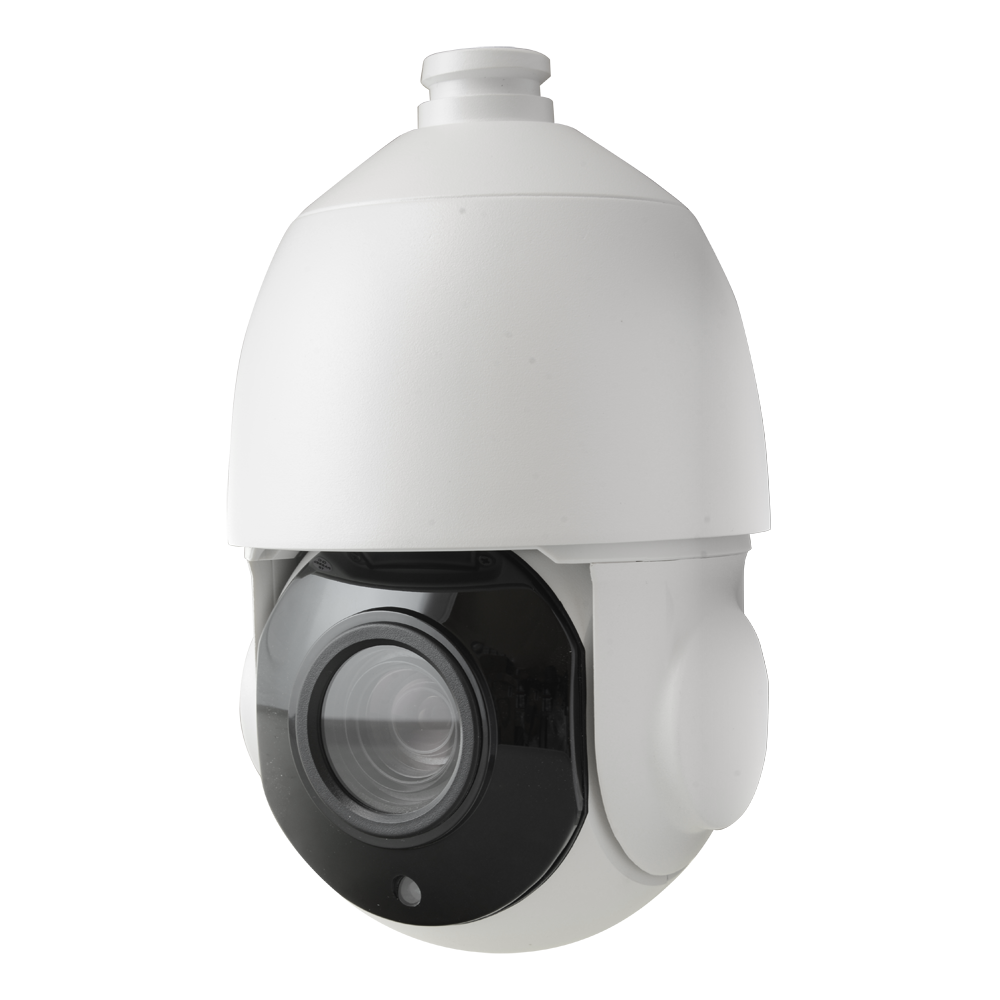

SD6118I-2PTVI

160,15 €
177,94 €

Motorized HDTVI camera - 1080P (25FPS) - 1/3" 2MP CMOS SONY323 - Optical Zoom 20X (4.7 ~ 94.0 mm) - IR LEDs Range 120 m - IP66

Availability

+ 5 Days

Buy

Description

HDTVI Speed dome camera

Mini format

20X Optical zoom

1/3" 2MP CMOS SONY323

HD 1080P (1920x1080)

HDTVI output

4.7~94.0 mm Varifocal lens

0 Lux

IR Range 120 m

IR Cut

RS485 Communication

UTC remote controller

OSD Menu

Weatherproof IP66

Wall bracket included

Specifications

Image sensor	1/3" 2MP CMOS SONY323
Resolution	1080P at 25 FPS
Video output	BNC HDTVI format
Minimum illumination	0.1 Lux (colour) / 0.01 Lux (B/N)
Lens	Varifocal 4.7~94.0 mm (Optical Zoom 20X)
Day / Night	Removable mechanical ICR filter
Gain Control	Auto / Manual
Backlight compensation	BLC, DWDR, AWB, AGC, 2D-NR
S/N ratio	>50 dB
Pan/Tilt Range	Horizontal: 0°~360°, Vertical: 0°~93° auto flip 180°
Manual speed	Horizontal: 0° ~ 80°/sec, Vertical: 0° ~ 40°/sec
Preset positions	220 preset, 1 auto tour, auto pan, auto scan
Motion Detection	Yes, it is available
Communication	RS485
Audio	No
Alarms	No
Power	DC 12 V / 3 A
Temp. operation	-40º C ~ +60º C
Degree of protection	IP66 \| Overvoltages 6000V
Dimensions (without bracket)	250 mm (H) x 120 (Ø) mm
Weight (without bracket)	2.8 kg

Contents

Wall bracket

Speed dome camera

User instructions

Power supply DC 12V / 3000 mA
