4N1 Bullet Camera
Installation material
User instructions
SF-B029G-3KE
36,41 €
40,45 €
40,45 €

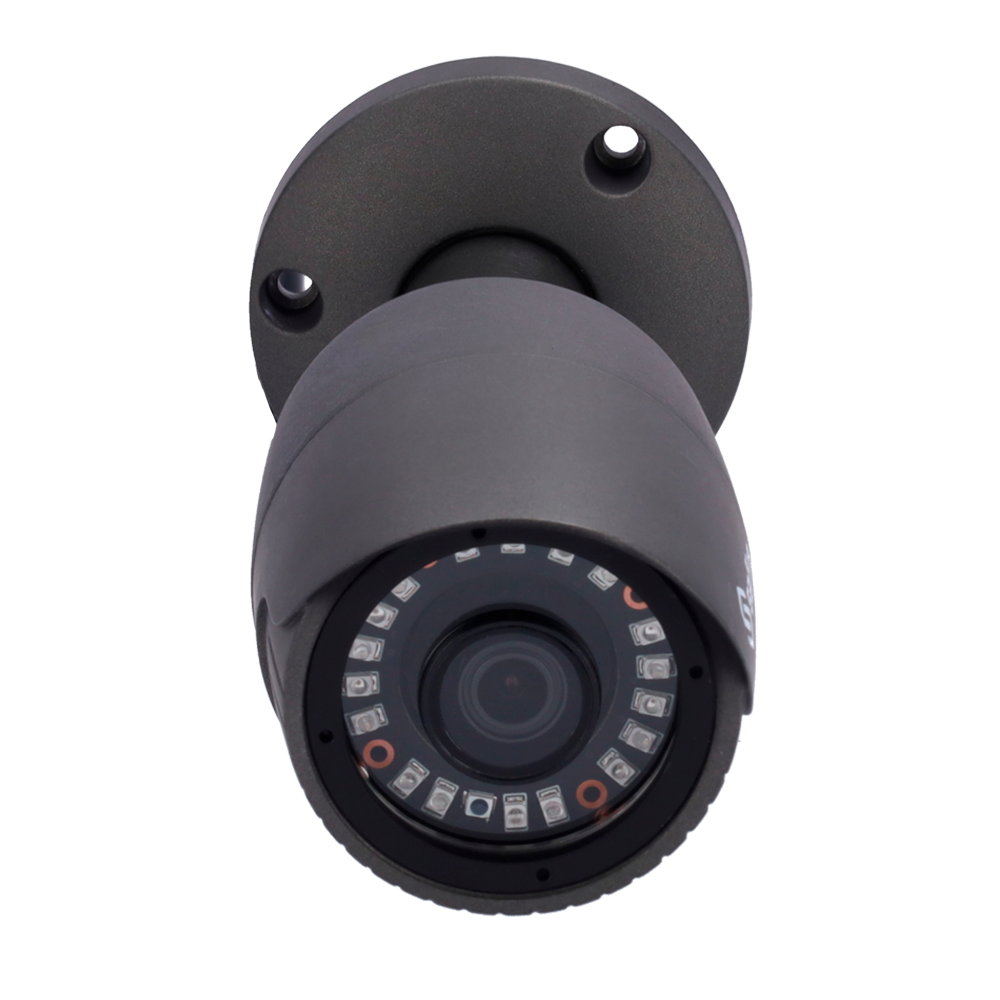

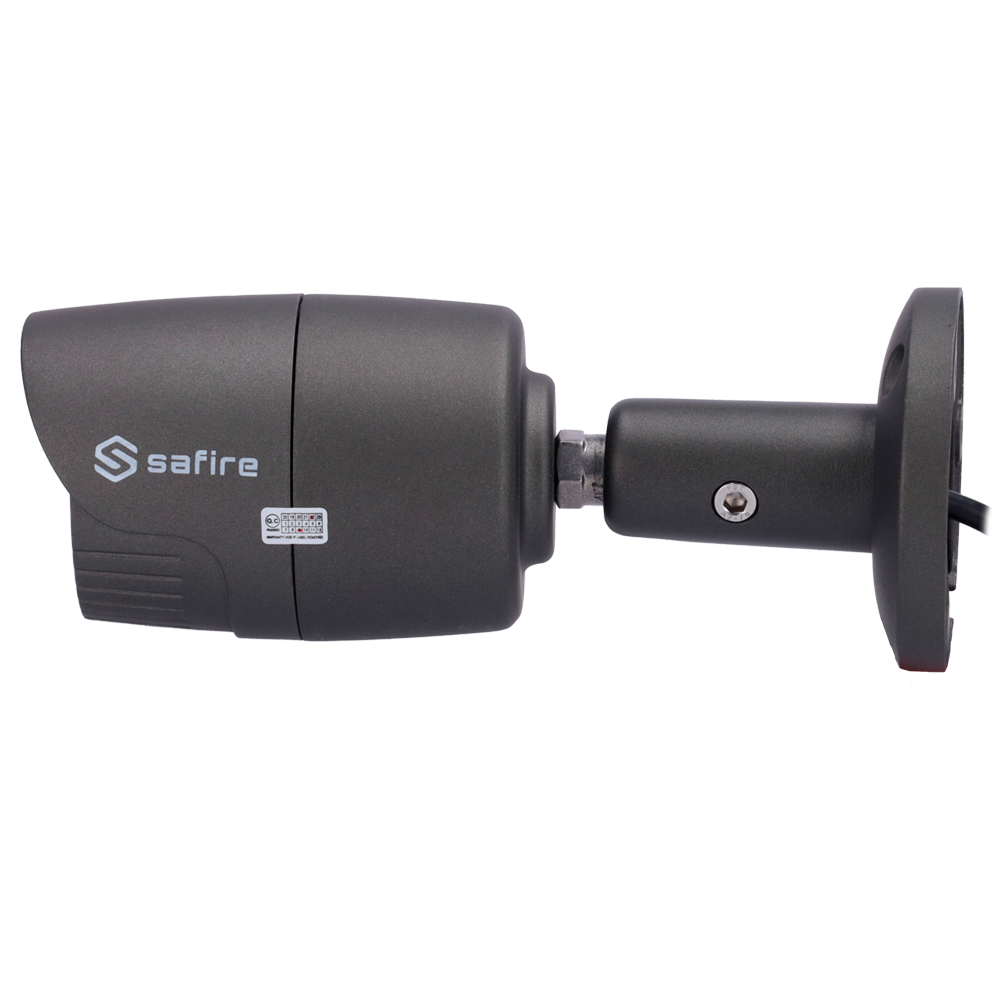

Bullet Camera ECO Range - Output 4 in 1 / Resolution 3K (2880x1620) - 1/3" CMOS 3K (5Mpx 16:9) - 3.6 mm Lens - IR Matrix LEDs IR Matrix LEDs Range 20 m - Weatherproof IP66
Description
HDTVI, HDCVI, AHD and Analog Bullet Camera
ECO Range
1/3" CMOS 3K (5Mpx 16:9)
3K (2880x1620)
Output 4in1
3.6 mm Lens
0 Lux
IR Matrix Range 20 m 2D DNR
IR Cut
Weatherproof IP66
Specifications
| Range | ECO |
| Image sensor | 1/3" CMOS 3K (5Mpx 16:9) |
| Maximum resolution | 3K (2880x1620) to 20 fps |
| Resolution | TVI: 3K (20 fps) / 4 Mpx (15~30 fps) / 1080p (25~30 [%VAR%] fps) CVI: 4 Mpx (25~30 fps) / 1080p (25~30 [%VAR%] fps) AHD: 4 Mpx (15~30 fps) / 1080p (25~30 [%VAR%] fps) CVBS: PAL/NTSC |
| Lens | 3.6 mm |
| Viewing Angle (FOV) | 60º (H) |
| Minimum illumination | 0.01 Lux @ (F1.2, AGC ON) |
| Infrared lighting | 0 Lux / IR Matrix LEDs (range 20 m) |
| Day / Night | Auto / Color / BW (black and white) |

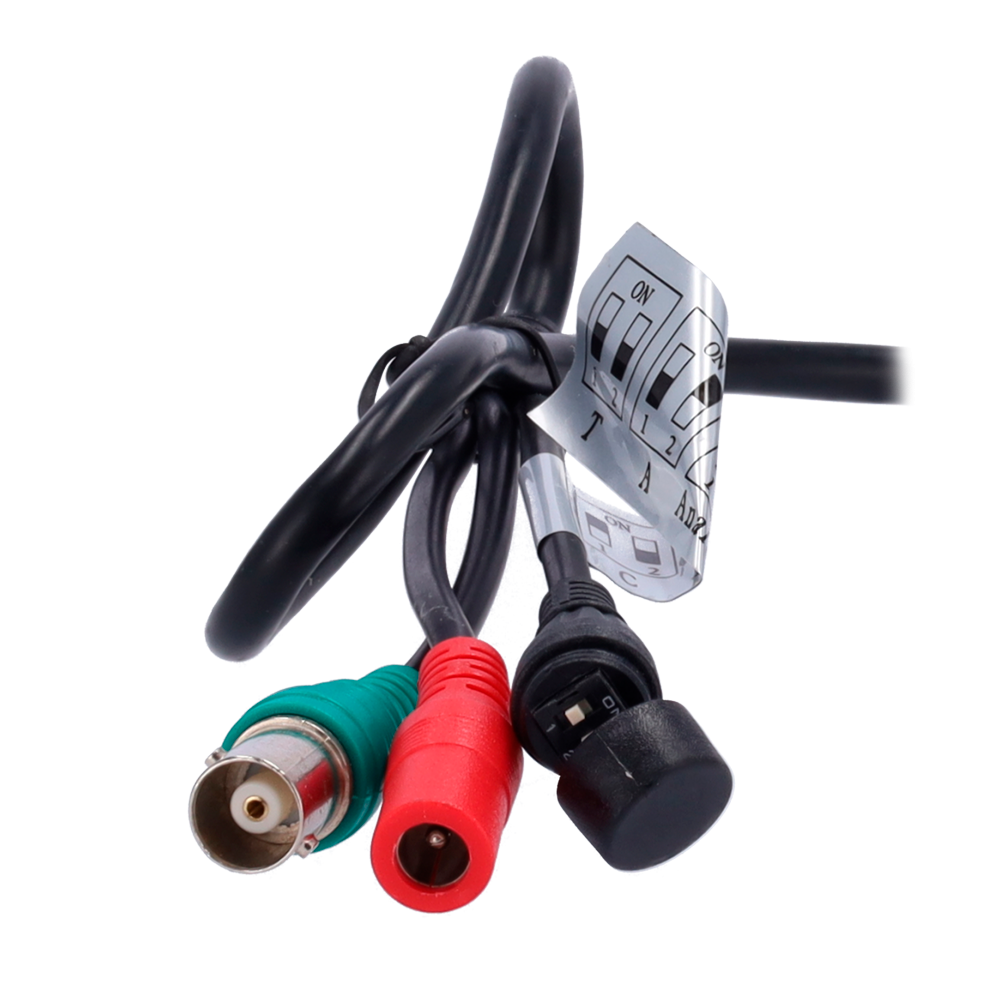

| Video output | 1 x BNC switchable between HDTVI / HDCVI / AHD / CVBS |
| Video output switching | Via Switch |
| Basic functions | OSD menu (remote) |
| Configurable OSD functions | DWDR, 2D DNR, AE, ATW, AWB, BLC, Mirror, Flip |
| Alarm | No |
| Audio | No |
| Power | DC 12 V / 400 mA, 4.8 W max. |
| Degree of protection | Weatherproof IP66 |
| Temp. operation | -10º C ~ +55º C |
| Material | Metal and plastic |
| Dimensions | 170 (D) x 60 (Ø) mm |

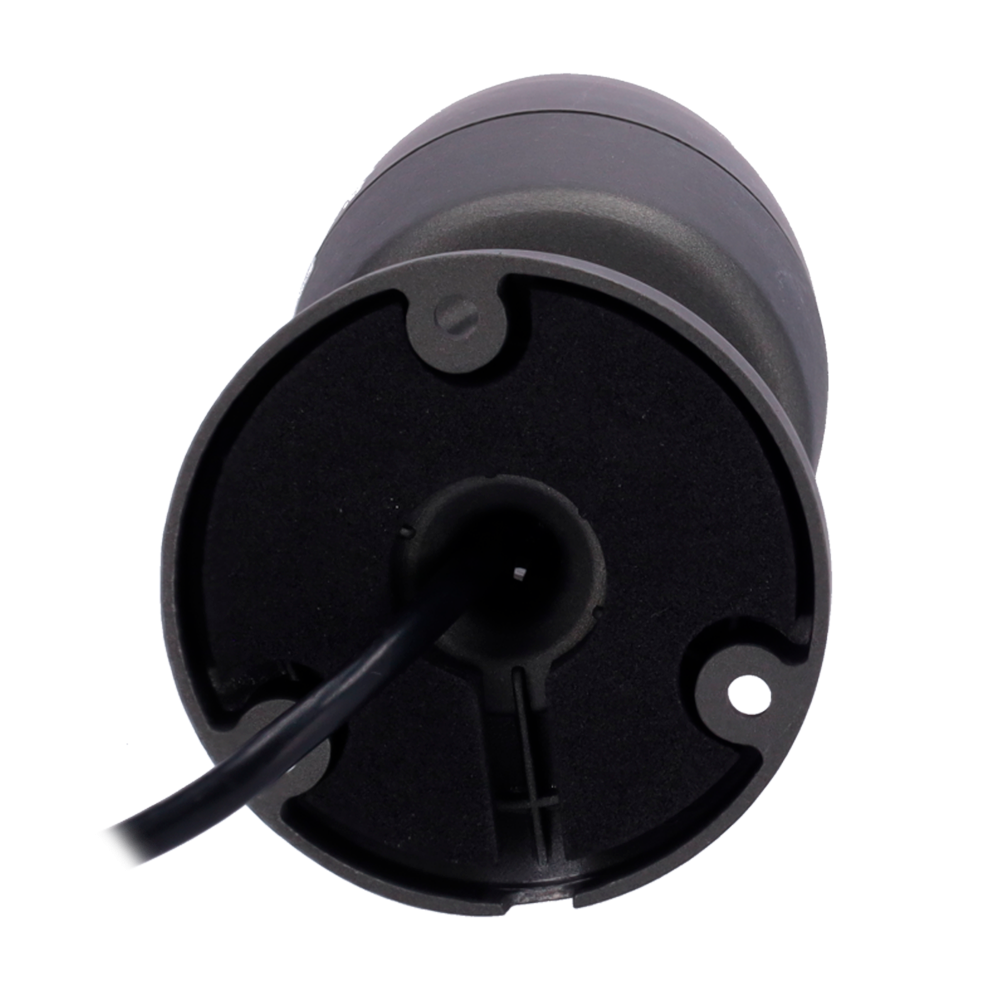

| Base diameter | 52 (Ø) mm / 3 screws |
| Weight | 300 g |
