Contents
SAFIRE multifunction CCTV Test Tool
Adapter AC/DC 12V / 3.0 A
Probes for tester
Cables and connectors for tester
User instructions
SF-TESTER-ARM-5N1-4K
140,95 €
151,56 €
151,56 €

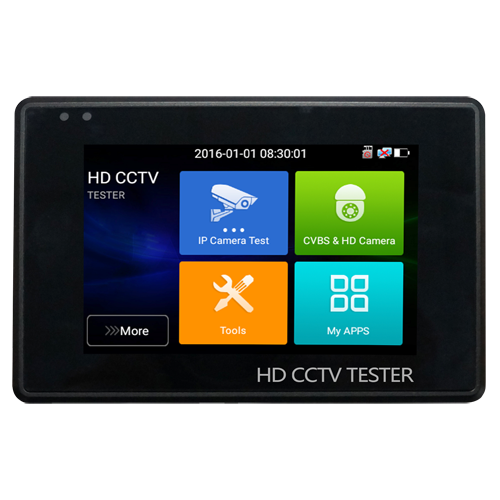

Multifunctional wrist held CCTV tester - Supports HDTVI, HDCVI, AHD, CVBS and IP cameras - Tester resolution up to 4K - Colour LCD display 4" - 2400mA Built-in Battery - Easy to use
Description
Safire
Multifunctional wrist held CCTV tester for HDTVI, HDCVI, AHD, analogue CVBS and IP cameras
LCD 4" touch screen
Resolution 800x480
Decodes camera images up to 8 MP HDTVI, HDCVI, AHD, CVBS and IP
BNC video input
Audio inputs/outputs
PTZ analyser and controller. Supports multiple protocols
Rechargeable lithium battery 7.4V 2.4Ah
DC power supply outputs 12 V and PoE power supply
Multi-language menu
Specifications
| Brand | SAFIRE |
| Screen | IPS 4” resolution 800x480 |
| Formats | HDTVI / HDCVI / AHD / Analog / CVBS / IP (4K) |
| Video settings | Brightness, contrast and saturation |
| Inputs | BNC (TVI/CVI/AHD/CVBS), RS485, RJ45 (UTC/SCAN), Audio |
| Outputs | No |
| PTZ | RS485 |
| Communication | WiFi, RJ45 10/100/1000M |
| Cable Tester | Independent accessory |
| Tools | Information Tool Cable RJ45 | Hard Drive Capacity Calculation Tool | TDR RJ45 Test |
| Power | Lithium Battery 7.4 V 2400 mAh |
| Charger | DC 12V 3A |
| Temp. operation | -10º C ~ +50º C |
| Dimensions / Weight | 126 mm x 83 mm x 33 mm / 320 g |
