Contents
- SAFIRE multifunction CCTV Test Tool
- Adapter AC/DC 12V / 3.0 A
- Protective Transportation Case
- Probes for tester
- Cables and connectors for tester
- User instructions
SF-TESTER4-5N1-4K
350,79 €
389,77 €
389,77 €

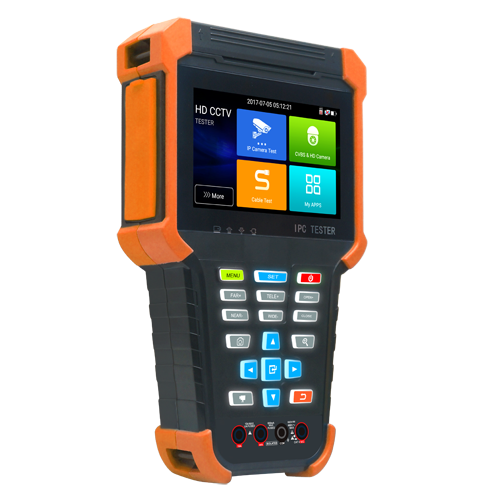

Multifunctional CCTV Tester - Supports HDTVI, HDCVI, AHD, CVBS and IP cameras - Tester resolution up to 4K - Colour LCD display 4" - 4000mA Built-in Battery - Easy to use
Description
- Safire
- Multi-functional CCTV tester for HDTVI, HDCVI, AHD, analogue CVBS and IP cameras
- LCD 4" touch screen
- Resolution 800x400
- Decodes the camera image up to 8 MP (HDTVI / HDCVI), 5 MP (AHD), 2 MP (CVBS) and 4K IP
- Built-in WiFi
- Audio inputs/outputs
- PTZ analyser and controller. Supports multiple protocols
- UTP Cable Tester
- Digital multimeter
- Rechargeable Lithium Battery 7.4V 4Ah
- DC power supply outputs 12 V and PoE power supply
- Multi-language menu
- BNC Video Input/Output (Loop)
- 1 HDMI input
Specifications
| Brand | SAFIRE |
| Screen | IPS 4” resolution 800x480 |
| Formats | HDTVI / HDCVI (4K) / AHD (5Mpx) / Analog CVBS (2Mpx) / IP (4K) |
| Video settings | Brightness, contrast and saturation |
| Inputs | BNC (TVI/CVI/AHD/CVBS), RS485, 2x RJ45 (UTC/SCAN), HDMI, Audio |
| Outputs | 1xAudio, 1x12VDC / 2A, 1xPoE |
| Analog video test | Colour bar generator |
| TDR Test | YES (Only for cable RJ45) |
| Digital Multimeter | Voltage, Current, Resistance, Diode (Conductivity) and Capacity |
| PTZ | RS485 |
| Communication | WiFi, RJ45 10/100/1000M |
| Cable Tester | Independent accessory |
| Power | Lithium Battery 7.4 V 4000 mAh |
| Charger | DC 12V 3A |
| Temp. operation | -10º C ~ +50º C |
| Dimensions / Weight | 240 mm x 123 mm x 38 mm / 600 g |
