- PIR detector
- Instructions Manual
- Mounting material

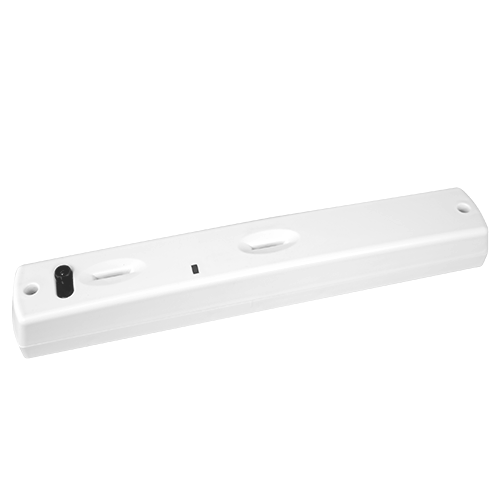

SOP-2IR-W
49,70 €
53,44 €
53,44 €
PIR detector - Integrated Ajax Transmitter - Double PIR curtain type - Detection range 3 m - Antimasking Technology - Reach in open space 1200 m
Description
- Sopras
- Outdoor curtain detector with low consumption
- Bidirectional
- Ajax Double PIR Curtain Detector with antimasking
- Detection: Range 3 m / 35º
- Motion detection indicator
- Tamper-resistant opening
- Range in open space 1200 m
- Power supply 1 battery ER14505 3.6 V
- Outdoor use
- Degree of protection IP54
- Includes mounting bracket
- White colour
- Includes Ajax transmitter for wireless communication with Ajax panels
Specifications
| Technology | Double PIR curtain detector with Antimasking |
| PIR lens | 2 zones |
| Detection range | 3 m / 35º |
| Frequency | 868 MHz Jeweller with Ajax transmitter included |
| Transmission distance | ≤ 1200 m in open space |
| Masking | Available |
| Tamper-resistant opening | Available |
| LEDs indication | Alarm |
| DIP switch configuration | Antimasking, AND/OR function, pulse counter (1 or 2) and LEDs |
| Wired outputs | Alarm, tamper and transmitter power supply |
| Power | 1 battery ER14505 3.6V |
| Consumption | Minimal consumption (Rest: 29 uA / Maximum: 0.9 mA) |
| Temp. operation | -20 ºC ~ 50 ºC |
| Degree of protection | IP54 |
| Dimensions | 295 (H) x 37 (W) x 32 (D) mm |
| Weight | 150 g |
