Contents
- Outdoor PIR Detector
- Bracket and shield
- Instructions Manual
- Mounting material

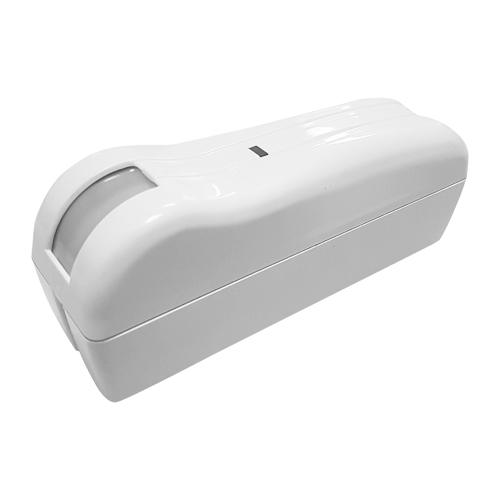

SOP-9DT-PRO
65,87 €
70,83 €
70,83 €
PIR detector - Microwave and PIR curtain - Integrated Ajax Transmitter - Detection range 10 m - Antimasking Technology - Reach in open space 1200 m
Description
- Sopras
- Outdoor curtain detector with low consumption
- Bidirectional
- Double technology: double PIR and microwave with antimasking
- Detection: Range 10m / H: 7.5º V: 48º
- Motion detection indicator
- Tamper-resistant opening
- Range in open space 1200 m
- Power supply 1 battery ER14505 3.6 V (included)
- Outdoor use
- Degree of protection IP54
- Includes mounting bracket
- White colour
- Includes Ajax transmitter for wireless communication with Ajax panels
Specifications
| Technology | Double technology: double PIR and microwave with antimasking |
| Detection range | 10 m / H: 7.5º V: 48º / Installation 2.1 m |
| Frequency | 868 MHz Jeweller (Ajax transmitter included) |
| Transmission distance | ≤ 1200 m in open space |
| Masking | Available |
| Sensitivity | Adjustable for PIR and Microwave. 3 levels |
| Tamper-resistant opening | Available |
| LEDs indication | Alarm |
| DIP switch configuration | PIR sensitivity, Microwave sensitivity, Antimasking, Battery saving mode and LEDs |
| Wired outputs | Alarm and tamper |
| Power | 1 battery ER14505 3.6V |
| Consumption | Minimal consumption (Rest: 50uA / Maximum: 15 mA) |
| Temp. operation | -20 ºC ~ 70 ºC |
| Degree of protection | IP54 |
| Accessories | L shaped bracket and shield included |
| Dimensions | 140 (H) x 43 (W) x 60 (D) mm |
