Contents
- Outdoor PIR Detector
- Instructions Manual
- Mounting material
SOP-BR-S
66,25 €
73,61 €
73,61 €

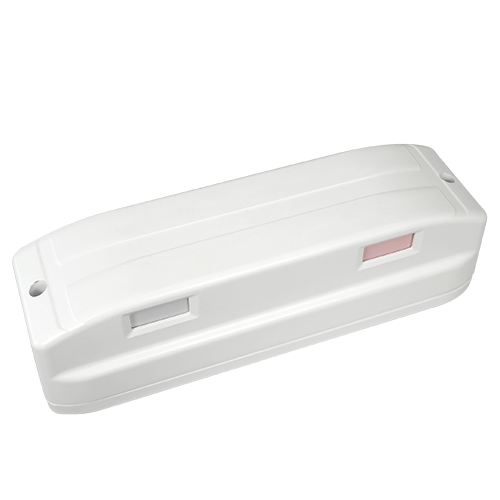

PIR detector - Integrated Ajax Transmitter - Curtain type, double PIR on each side - 9 m of detection on each side - Reach in open space 1600 m - Outdoor use
Description
- Sopras
- Outdoor curtain detector with low consumption
- Bidirectional
- Double PIR per side
- Detection: Range 9 m on each side
- Motion detection indicator
- Tamper-resistant opening
- Range in open space 1600 m
- Power supply 1 battery ER14505 3.6 V
- Outdoor use
- Degree of protection IP65
- Includes mounting bracket
- White colour
- Includes Ajax transmitter for wireless communication with Ajax panels
Specifications
| Technology | Double PIR curtain type |
| PIR lens | 4 zones (2 on each side) |
| Detection range | 9 m / Installation 1~1.2 m |
| Frequency | 868 MHz Jeweller with Ajax transmitter included |
| Transmission distance | ≤ 1600 m in open space |
| Masking | Not available |
| PIR Sensitivity | Adjustable. 3 levels on each side |
| Tamper-resistant opening | Available |
| LEDs indication | Alarm |
| DIP switch configuration | Activation, PIR range and AND/OR (independent on each side), Battery Saving Mode and LEDs |
| Wired outputs | Alarm left side, alarm right side, tamper and transmitter power supply |
| Power | 1 battery ER14505 3.6V |
| Consumption | Minimal consumption (Rest: 29uA / Maximum: 0.9 mA) |
| Temp. operation | -20 ºC ~ 70 ºC |
| Degree of protection | IP65 |
| Dimensions | 220 (H) x 70 (W) x 60 (D) mm |
| Weight | 550 g |
