Contents
- Industrial Gateway
- 1x LTE Antenna
- AC power supply 4,5W
- Micro-USB cable 0,8m
- User instructions
TK-TRB142
111,08 €
119,44 €
119,44 €

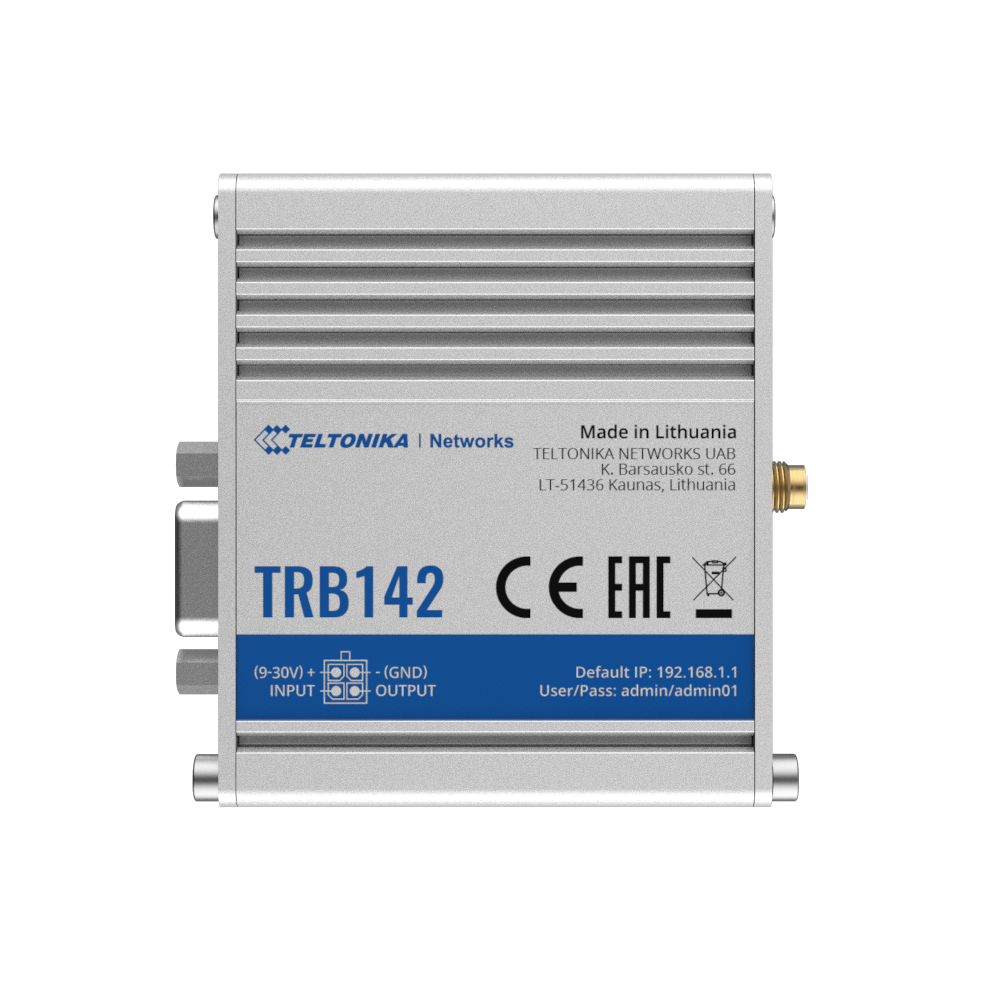

Teltonika Gateway 4G Industrial - 4G Cat 1 / 3G / 2G - Port RS232 - Compact Design - Micro USB connector
Description
- Teltonika
- Gateway 4G Industrial
- 4G Cat 1
- Serial Port RS232
- 2x Digital inputs/outputs
- Industrial 4 pin DC power connector
- DC power 9 to 30V Power Supply Included
- Rugerized
- Status LEDs
Specifications
| Brand | Teltonika |
| Device | Gateway 4G Industrial |
| CPU | ARM Cortex-A7 1.2 GHz CPU |
| RAM | 128MB |
| Flash | 512MB |
| Operating System | RutOS (Based on OpenWRT) |
| Network Protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSLv3, TLS 1.3, ARP, PPP, DHCP, Telnet |
| VPN Protocols | OpenVPN, IPsec, GRE, PPTP, L2TP, Stunnel, DMVPN, SSTP, WireGuard, ZeroTier |
| Monitoring and Management | WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS |
| Cloud Solutions | RMS, FOTA, Telenor, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx |
| Power | DC connector 4 Industrial pins 9~30V Power Supply Included |
| Material | Aluminium |
| Temp. operation | -40º C ~ +75º C |
| Operating humidity | 10 ~ 90 % (non-condensing) |
| Optional Mounting Kit (Not included) | Rail Mounting Kit, Compact Rail Mounting Kit, Surface Mounting Kit |
| Dimensions | 25 (Al) x 74,5 (W) × 64,4 (Fo) mm |
| Weight | 135 g |
| Inputs and Outputs | 2 x Configurable Inputs/Outputs, Digital Input at 0 - 5 V is detected as low level, 8 - 30 V detected as high level. Open collector output, maximum output 30 V, 300 mA (not available in TRB142*2****)) |
| Region | Europe, Middle East, Africa, Australia, APAC2, Brazil, and Malaysia |
