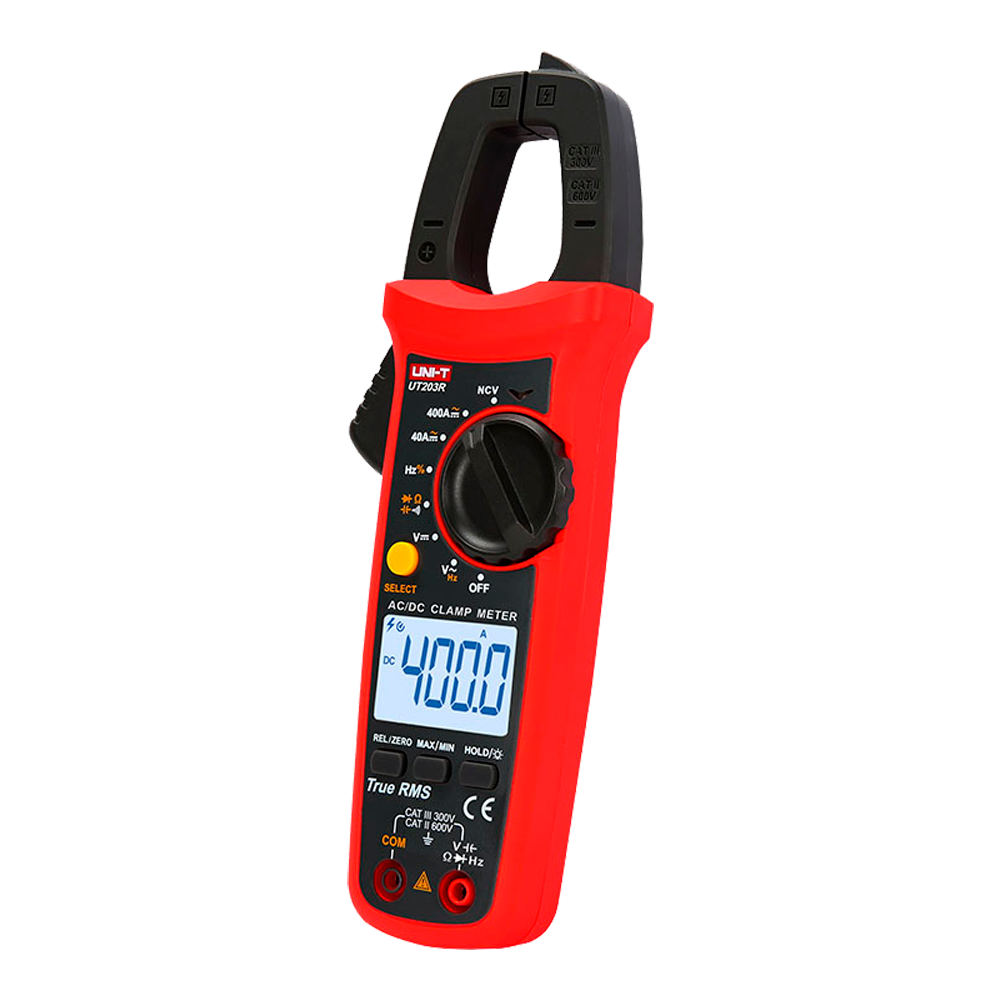

UT203R

46,37 €
51,52 €

Current clamp - DC measurement up to 600V and 400A - Measurement in AC up to 600V and 400A - Capacitance/frequency - Auto Range | Test diodes| True RMS | NVC - Clamp opening of 28mm

Brand

UNI-TREND

Availability

2-5 Days

Questions about this item

Best Price Guarantee

Buy

Description

UNI-T
Clamp meter CAT II 600V/ CAT III 300V
LCD display up to 4000 accounts
AC and DC current measurement up to 400 A
DC and AC voltage measurement up to 600 V
High accuracy in AC with built-in True RMS function
Frequency and capacitance measurement
Buzzer for continuity test
Diode test
NCV (non-contact voltage) function
Automatic shutdown

Specifications

Brand	Uni-T
Measuring range DC and AC current	AC: 400A ±(2%+5); Response frequency: 50~100Hz DC: 400A ±(2%+5)
DC and AC voltage measuring range	AC: 600V ±(0.8%+5); Response frequency: 10Hz~60kHz DC: 600V ±(0.5%+2)
Capacitance measuring range	40mF ±(4%+5)
Frequency measurement range	10Hz~10MHz ±(0.1%+4)
Display accounts	Up to 4000
Display dimensions	37mm x 25mm
Clamp opening	28mm
Auto Range / Manual Range / True RMS	Yes, it is available
Diode test	Yes, it is available
NCV function (non-contact voltage detection)	Yes, it is available
Relative mode	Yes, it is available
MAX/MIN register	Yes, it is available
Continuity test	Yes, it is available
Low battery indicator	Yes, it is available
Zero mode	Yes, it is available
Power	2 x batteries (R03) 1.5V
Dimensions	215 (H) x 63 (W) x 36 (D) mm
Weight	235 g
Security	CAT III 300V/ CAT II 600V CAT II [%VAR%]

Contents

Current clamp
Test leads
Batteries
User instructions
