Contents
- Current clamp
- Test leads
- Batteries
- User instructions

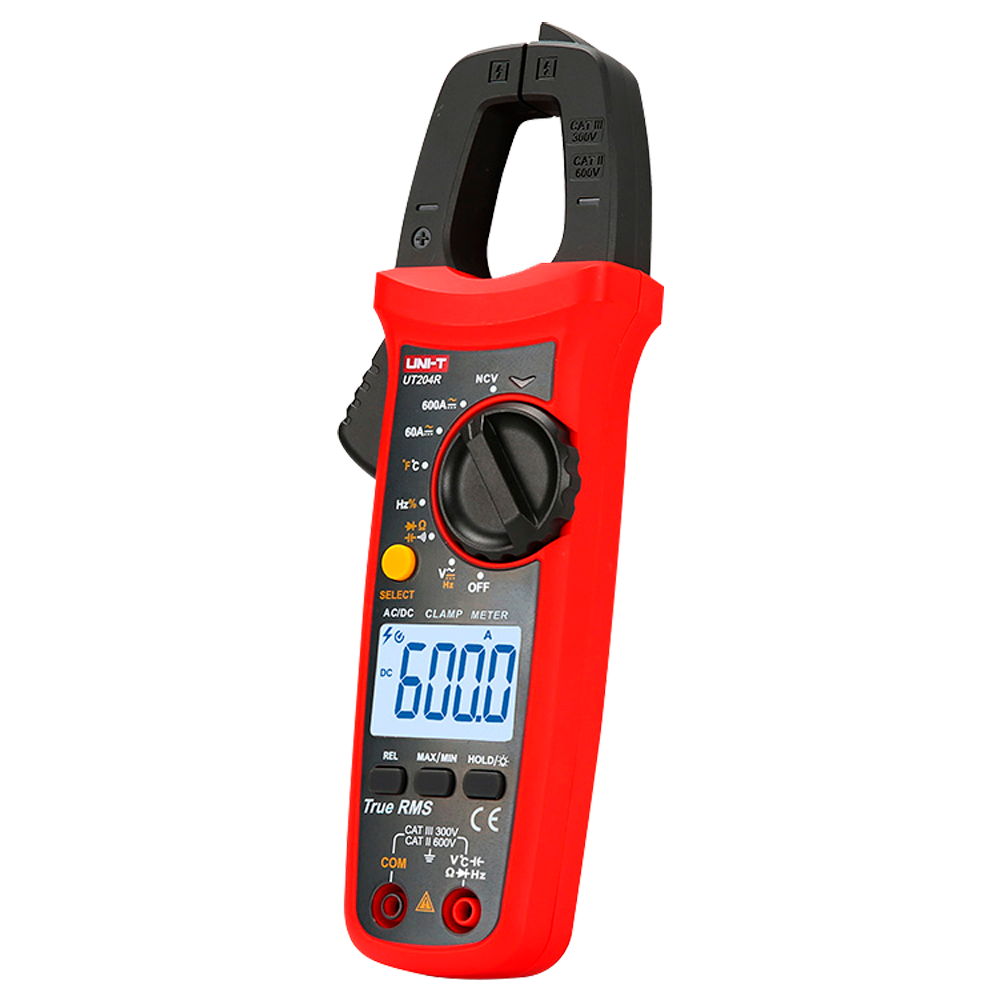

UT204R
47,97 €
53,30 €
53,30 €
Current clamp - DC measurement up to 600V and 600A - Measurement in AC up to 600V and 600A - Resistance/capacitance/frequency/temperature - Auto Range | Diode Test | True RMS - Clamp opening of 28mm
Description
- UNI-T
- Clamp meter CAT II 600V/ CAT III 300V
- LCD display up to 6000 accounts
- AC and DC current measurement up to 600 A
- DC and AC voltage measurement up to 600 V
- High accuracy in AC with built-in True RMS function
- Resistance, frequency, capacitance and temperature measurement
- Buzzer for continuity test
- Diode test
- NCV (non-contact voltage) function
- Automatic shutdown
Specifications
| Brand | Uni-T |
| Measuring range DC and AC current | AC: 600A ±(2.5%+5); Response frequency: 50~100Hz DC: 600A ±(2.5%+5) |
| DC and AC voltage measuring range | AC: 600V ±(0.8%+5); Response frequency: 10Hz~60kHz DC: 600V ±(0.5%+2) |
| Resistance measuring range | 60MΩ ±(0.8%+2) |
| Capacitance measuring range | 60mF ±(4%+5) |
| Frequency measurement range | 10Hz~10MHz ±(0.1%+4) |
| Temperature measurement range | -40℃~1000℃ ±(1.5%+5) |
| Display accounts | Up to 6000 |
| Display dimensions | 37mm x 25mm |
| Clamp opening | 28mm |
| Auto Range / Manual Range / True RMS | Yes, it is available |
| Diode test | Yes, it is available |
| NCV function (non-contact voltage detection) | Yes, it is available |
| Relative mode | Yes, it is available |
| MAX/MIN register | Yes, it is available |
| Continuity test | Yes, it is available |
| Low battery indicator | Yes, it is available |
| Zero mode | Yes, it is available |
| Power | 2 x batteries (R03) 1.5V |
| Dimensions | 215 (H) x 63 (W) x 36 (D) mm |
| Weight | 235 g |
| Security | CAT III 300V/ CAT II 600V CAT II [%VAR%] |
