Contents
- Current clamp
- Test leads
- Temperature probe
- Batteries
- User instructions

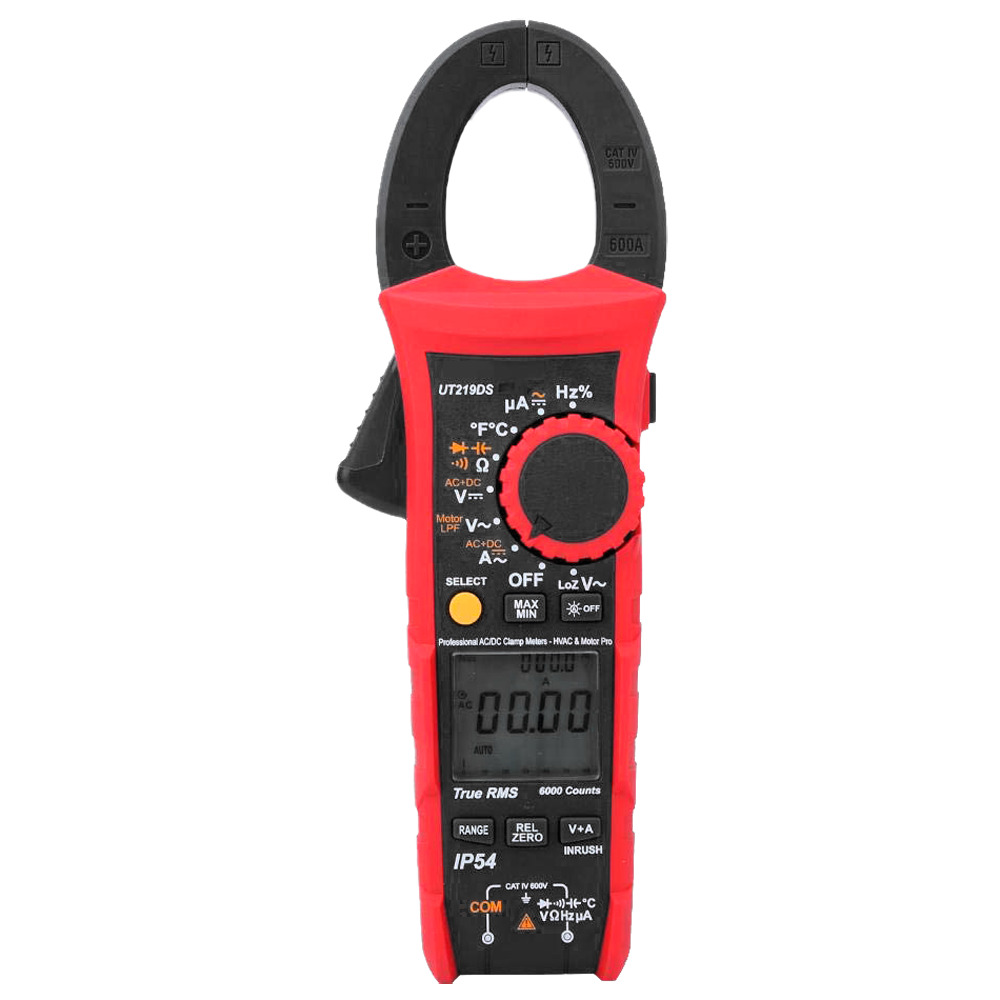

UT219DS
136,84 €
152,04 €
152,04 €
Current clamp - DC measurement up to 1000V and 600A - Measurement in AC up to 1000V and 600A - Resistance/capacitance/frequency/temperature - Auto Range | Diode Test | True RMS - Clamp opening of 33mm
Description
- UNI-T
- Current clamp CAT IV 600V
- LED backlight display up to 6000 accounts
- AC and DC voltage measurement up to 1000V
- DC and AC current measurement up to 600 A
- High accuracy in AC with built-in True RMS function
- LPF filter
- Resistance, Capacitance and Frequency Measurement
- Temperature measurement between -40ºC~1000ºC
- Buzzer for continuity test
- NCV (non-contact voltage) function
- Diode test
- Motor test 3-phase
- Zero mode function
- Automatic shutdown
Specifications
| Brand | Uni-T |
| Measuring range DC and AC current | AC: 600A ±(1.8%+6); Response frequency: 40~400Hz DC: 600A ±(1.8%+6) |
| DC and AC voltage measuring range | AC: 1000V ±(1%+6); Response frequency: 40~1000Hz DC: 1000V ±(0.6%+3) |
| Resistance measuring range | 60MΩ ±(1%+3) |
| Capacitance measuring range | 60mF ±(4%+7) |
| Frequency measurement range | 600Hz~40MHz ±(0.1%+6) |
| Temperature measurement range | -40ºC~1000ºC ±(2%+5) |
| Duty cycle | 0.1% ~ 99.9% ±(2.6%+7) |
| Display accounts | Up to 6000 |
| Display dimensions | 38mm x 24mm |
| Auto Range / Manual Range / True RMS | Yes, it has |
| Diode test | Around 3V |
| Auto range | Yes, it is available |
| VFC and NCV function (Non-contact voltage detection) | Yes, it is available |
| Motor test 3-phase | Yes, it is available |
| Relative mode | Yes, it is available |
| MAX/MIN register | Yes, it is available |
| Continuity test | Yes, it is available |
| Low battery indicator | If you have (<3.6V) |
| Input protection | Yes, it is available |
| Input impedance DCV | > 10MΩ |
| Power | 3 x batteries (R03) 1.5V |
| Dimensions | 234.6 (H) x 82 (W) x 47 (D) mm |
| Weight | 310 g |
| Security | CAT IV 600V |
