Uniview WiFi IP Camera
Installation material
User instructions

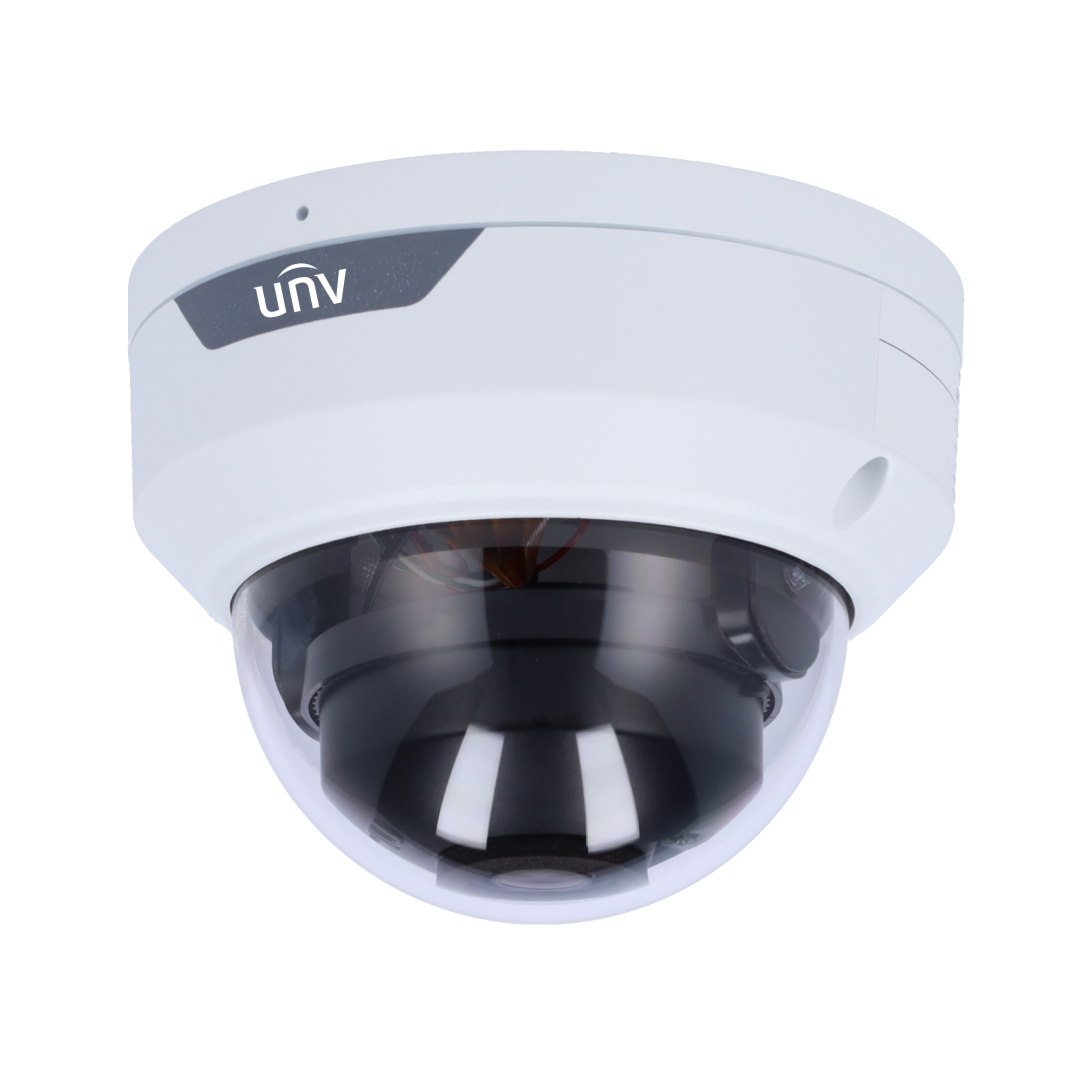

UV-IPC322LB-AF28WK-G
2 MP WiFi IP Camera - Easy range - 1/2.9" Progressive Scan CMOS - 2.8 mm Lens - IR LEDs Range 30 m - WEB, CMS, Smartphone and NVR interface
Description
Uniview
WiFi IP camera
Easy range
1/2.9" Progressive Scan CMOS
2 Megapixel (1920x1080)
2.8 mm Lens
0 Lux
IR Range 30 m
Compression Ultra265/H.265/H.264
RJ-45 10/100 BaseT
Built-in microphone
802.11 b/g/n WiFi IEEE
MicroSD card up to 128GB
Weatherproof IP67
Vandal proof IK10
IR Cut
WEB, CMS, Smartphone and NVR interface
ONVIF Compatible
Specifications
| Brand | Uniview |
| Range | Easy |
| Image sensor | 1/2.9” Progressive Scan CMOS |
| Maximum resolution | 2 Megapixel (1920x1080) |
| Main Stream rate | 1080P (1920*1080)@30fps; 720P (1280*720)@30fps |
| Extra Stream rate | 720P (1280*720)@30fps; D1 (720*576)@30fps; 640*360@30fps; 2CIF(704*288)@30fps; CIF(352*288)@30fps |
| Compression | Ultra265/H.265/H.264 |
| Lens | 2.8 mm |
| Minimum illumination | 0.01 Lux (Colour) |
| Infrared range | 30 m |
| Image improvements | DWDR, BLC, HLC, AGC, 2D/3D-NR, Motion detection, ROI, Privacy Mask |
| Day / Night | Mechanical ICR filter |
| Intelligent functions | Intrusion detection, human body detection, motion detection, sabotage detection |
| Internal memory | MicroSD card, Max 128 GB |
| Alarms | No |
| Audio | Built-in microphone |
| Network interface | Wi-Fi IEEE802.11b/g/n, Ethernet 10/100 BaseT |
| Remote access | Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
| Interoperability | ONVIF |
| Power | DC 12V / 4W |
| Temp. operation | -30º C ~ 60º C |
| Degree of protection | Weatherproof IP67, Anti-vandal IK10 |
| Dimensions | Φ109 x 83 mm |
| Weight | 320 g |
