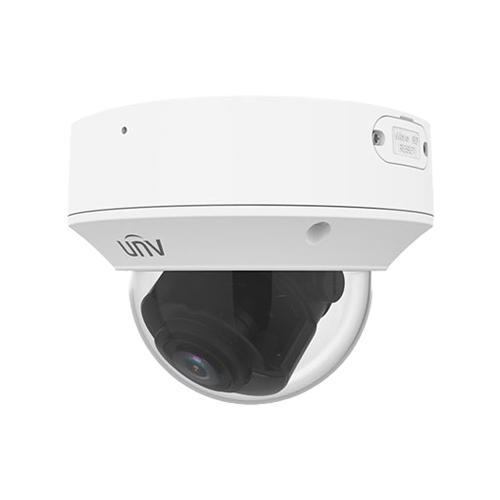

UV-IPC3232SB-ADZK-I0

2 MP IP Camera - Prime range - 2.7~13.5 mm motorised AF / WDR Lens - IR LEDs Range 40 m | Audio and Alarms - AI Algorithm | Avoid false alarms - WEB, CMS, Smartphone and NVR interface

Brand

UNIVIEW

Availability

+ 5 Days

Questions about this item

Available for resale

Description

Uniview

IP Dome Camera

Prime range

1/2.8" Progressive Scan CMOS

2 Megapixel (1920x1080)

2.7~13.5 mm motorised varifocal autofocus lens

0 Lux - IR Range 40 m

Lens positioning in 3 axes

Compression Ultra265/H.265/H.264

WDR 120dB

Intelligent Perimeter Protection | Accurate detection of humans and vehicles (avoids false alarms)

Alarms

Audio

Integrated microphone

RJ-45 10/100 BaseT

PoE IEEE802.3af

IR Cut

SD card recording

Weatherproof IP67

Vandal proof IK10

Surge protection

WEB, CMS, Smartphone and NVR interface

ONVIF Compatible

Specifications

Brand	Uniview
Range	Prime
Image sensor	1/2.8” Progressive Scan CMOS
Maximum resolution	2 Megapixel (1920x1080)
Main Stream rate	1080p (1 ~ 30 FPS)
Extra Stream rate	2º:720p (1 ~ 30 FPS), 3º:D1 (1 ~ 30 FPS)
Compression	Ultra265+/H.265/H.264
Lens	2.7~13.55mm Motorised auto-focus
Minimum illumination	0.0005 Lux (Colour)
Infrared range	40 m
Image improvements	WDR (120dB), BLC, HLC, AGC, 2D/3D-NR, ROI, Privacy Mask, Smart IR
SIP (Smart Intrusion Prevention)	Intelligent Intrusion Prevention. Accurate detection of humans and vehicles to avoid false alarms. Event due to line crossing, area intrusion or entry or exit of a previously defined area
Intelligent functions	Line Crossing, Motion Detection, Audio Detection, Tamper Protection, Corridor Mode
Day / Night	Mechanical ICR filter
Internal memory	MicroSD card, Max 256 GB
Video Backup	ANR video recovery technology by installing a Micro SD card
Alarms	1 input / 1 relay
Audio	1 IN / 1 OUT \| Integrated microphone
Network interface	Ethernet 10/100 BaseT
Remote access	Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive)
Interoperability	ONVIF
Power	DC 12 V / 7.5 W, PoE IEEE802.3af
Temp. operation	-30º C ~ 60º C
Degree of protection	Waterproof IP67, Vandal-proof IK10, Surge protection
Dimensions	148 (d) x 111.4 (W) mm
Weight	920 g

Contents

Uniview IP Camera

Installation material

User instructions
