Uniview IP Camera
Installation material
User instructions

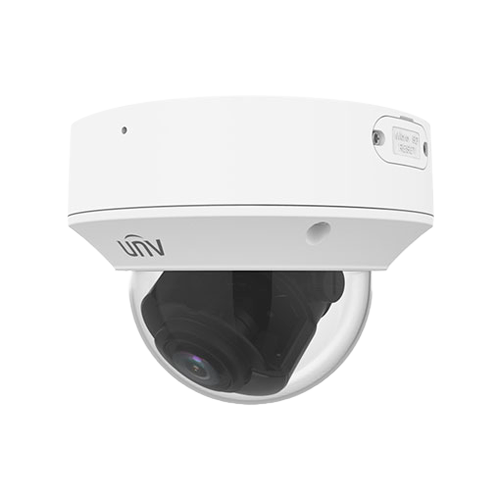

UV-IPC3238SB-ADZK-I0
IP Camera 8 Megapixel - Prime range - 2.8~12 mm motorised AF / WDR Lens - IR LEDs Range 40 m | Audio and Alarms - AI Algorithm | Avoid false alarms - WEB, CMS, Smartphone and NVR interface
Description
Uniview
IP Dome Camera
Prime range
1/2.8" Progressive Scan CMOS
8 Megapixel (3840x2160)
2.8~12 mm motorised varifocal autofocus lens
0 Lux
IR Range 40 m
WDR 120dB
Compression Ultra265/H.265/H.264
RJ-45 10/100 BaseT
Audio
Alarms
PoE IEEE802.3af
Weatherproof IP67
Vandal proof IK10
Surge protection
MicroSD slot
WEB, CMS, Smartphone and NVR interface
ONVIF Compatible
Specifications
| Brand | Uniview |
| Range | Prime |
| Image sensor | 1/2.8” Progressive Scan CMOS |
| Maximum resolution | 8 Megapixel (3840x2160) |
| Main Stream rate | 8MP (3840*2160)@20fps; 5MP (3072*1728)@30fps; 4MP (2560*1440)@30fps; 1080P (1920*1080)@30fps |
| Extra Stream rate | 1080P (1920*1080)@30fps; 720P (1280*720)@30fps; D1 (720*576)@30fps; 640*360@30fps; 2CIF(704*288)@30fps; CIF(352*288)@30fps; |
| Compression | Ultra265+/H.265/H.264 |
| Lens | 2.8~12mm Motorised auto-focus |
| Minimum illumination | 0.003 Lux (Colour) |
| Infrared range | 40 m |
| Image improvements | WDR (120dB), BLC, HLC, AGC, 2D/3D-NR, ROI, Privacy Mask, Smart IR |
| SIP (Smart Intrusion Prevention) | Intelligent Intrusion Prevention. Accurate detection of humans and vehicles to avoid false alarms. Event due to line crossing, area intrusion or entry or exit of a previously defined area |
| Intelligent functions | Line Crossing, Motion Detection, Audio Detection, Tamper Protection, Corridor Mode |
| Day / Night | Mechanical ICR filter |
| Internal memory | MicroSD card, Max 256 GB |
| Video Backup | ANR video recovery technology by installing a Micro SD card |
| Alarms | 1 input / 1 relay |
| Audio | 1 IN / 1 OUT | Integrated microphone |
| Network interface | Ethernet 10/100 BaseT |
| Remote access | Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive) |
| Interoperability | ONVIF |
| Power | DC 12 V / 9 W, PoE IEEE802.3af |
| Temp. operation | -30º C ~ 60º C |
| Degree of protection | Waterproof IP67, Vandal-proof IK10, Surge protection |
| Dimensions | Φ148 x 111.4mm |
| Weight | 970 g |
