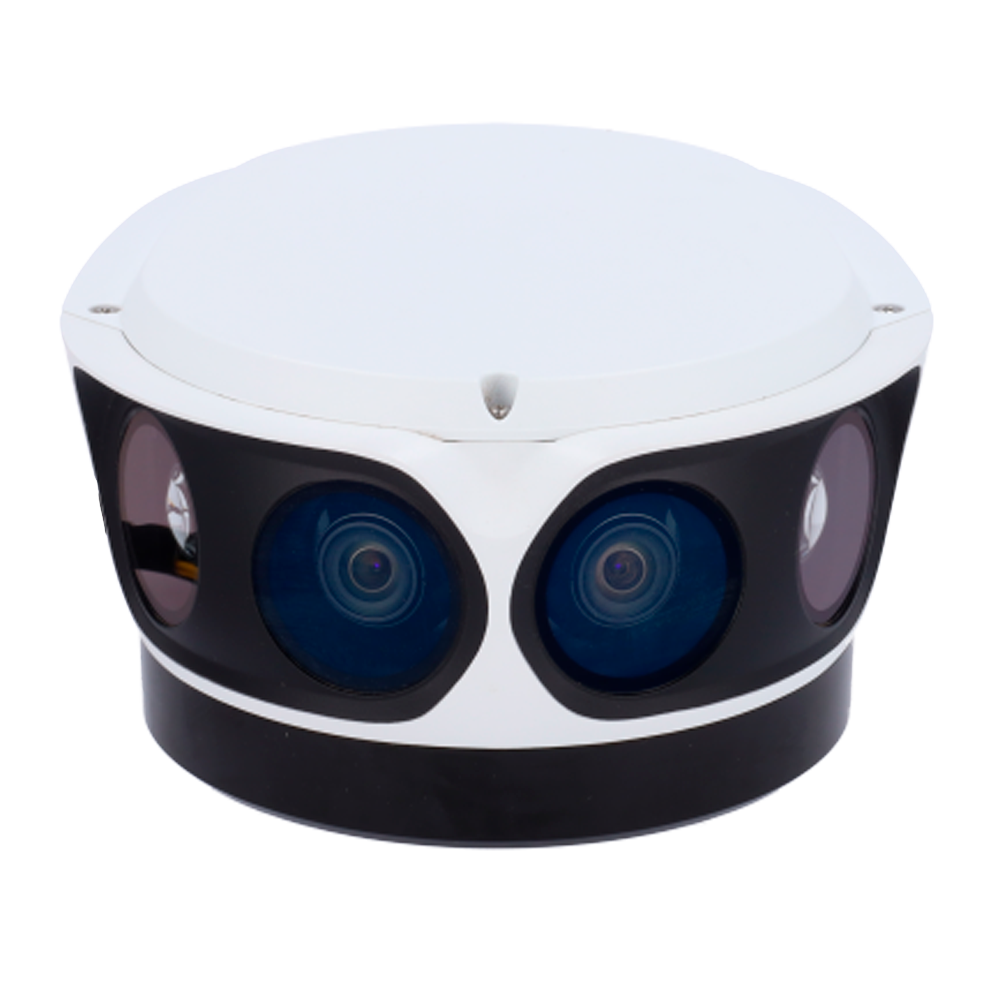

UV-IPC8542ER5-DUG

Panoramic IP Camera 12 Megapixel (4096x1800) - Pro range - 1/1.8" Progressive Scan CMOS - Lens 4.2 mm | 4 Lenses - IR 50 m : Alarms - WEB, CMS, Smartphone and NVR interface

Brand

UNIVIEW

Availability

2-5 Days

Questions about this item

Available for resale

Description

Uniview

IP camera

Pro range

1/1.8" Progressive Scan CMOS

12 Megapixel (4096x1800)

4 Lenses

4.2 mm Lens

Overview

0 Lux

IR Range 50 m

Compression Ultra265/H.265/H.264

RJ-45 10/100 BaseT

Alarm

Intelligent functions

Weatherproof IP67

Vandal proof IK10

IR Cut

WDR (120 dB)

SD card recording

WEB, CMS, Smartphone and NVR interface

ONVIF Compatible

Specifications

Brand	Uniview
Range	Pro
Image sensor	1/1.8” Progressive Scan CMOS
Maximum resolution	12 Megapixel (4096x1800)
Main Stream rate	4096×1800@30 fps
Extra Stream rate	2º: 1920×832@30fps; 3º: 12580x560@30fps
Compression	Ultra265/H.265/H.264
Lens	Lens 4.2 mm \| (4 Lenses - Panoramic)
Minimum illumination	0.002 Lux (Colour)
Infrared range	50 m
Image improvements	WDR (120dB), BLC, HLC, AGC, 2D/3D-NR, Motion detection, ROI, Privacy Mask, Smart IR
Day / Night	Mechanical ICR filter
Internal memory	MicroSD card, Max 256 GB
Alarms	2 input / 1 relay
Intelligent functions	Line crossing, intrusion detection, motion detection, etc
Network interface	Ethernet 10/100 BaseT
Remote access	Web Browser, CMS Software (EZStation), Smartphone (EZView/EZLive)
Interoperability	ONVIF
Power	AC24V±25%/ DC24V 18V-48V
Temp. operation	-40º C ~ 70º C
Degree of protection	Weatherproof IP67
Dimensions	259mm x 211mm x 115mm
Weight	2.4 kg

Contents

Uniview IP Camera

Installation material

User instructions
