Uniview Biometric Device
Mounting material
User instructions

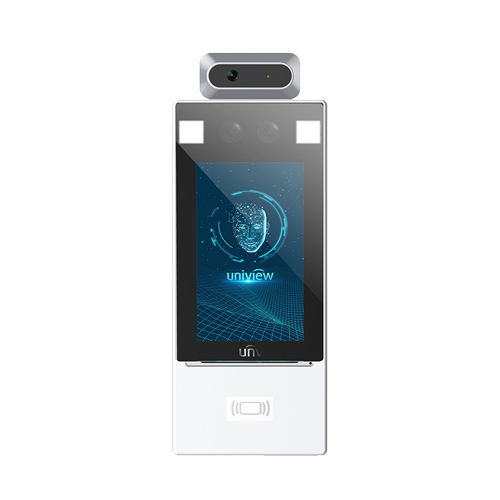

UV-OET-213H-BTM32
Temperature Access Control - Detection of fever and mask - Facial recognition and MF card - 10.000 faces, 100.000 registrations - TCP/IP, USB | Forehead detection - Mounting on the wall or with a floor stand
Description
Uniview
Stand-alone biometric access control reader
Identification by facial recognition and MF card
Body temperature measurement
Accuracy ±0.3℃
Forehead fever detection
Configurable alarm if the person isn't wearing a mask
7" LCD color touch screen
Up to 10.000 faces & 100.000 registers
TCP/IP Communication
Integrated controller (Door sensor, Push-button & Relay)
Dual sensor camera for face recognition
Specifications
| Brand | Uniview |
| Model | OET-213H-BTM32 |
| CPU | Linux |
| Sensor | Dual lens with IR and WDR |
| Activation sensor | Infrared auto-activation |
| Read time | < 0.5 Sec. |
| Capacity | Up to 10.000 faces/cards |
| Records | 100.000 registers |
| Identification modes | Facial recognition |
| Sensor | Thermopile |
| Temperature Range | 30℃ - 45℃ |
| Accuracy | ±0.3℃ |
| Temperature Functions | Mask detection alarm (Configurable), Fever detection alarm (Configurable), Opening only with mask (Configurable) |
| Proximity card | Card MF13.56MHz |
| Screen | 7" LCD Touch Screen |
| Screen Resolution | 1024x600 |
| Camera | 2 MP with dual facial recognition sensor |
| Communication | TCP/IP, USB, RS485 |
| Integrated controller | Door sensor, push button, door bell and relay |
| Inputs / Outputs | 2 Alarm Inputs / Alarm 1 Output / Wiegand IN / Wiegand OUT |
| Software | No. Stand alone device |
| Power | DC 12 V / 2 A max. |
| Degree of protection | Interior IP54 |
| Temp. operation | -20º C ~ +65º C |
| Dimensions | 305 (W) x 134 (H) x 33 (D) mm |
| Weight | 300 g |
