VXS-AM (W)

Key Features
- Intelligent 12m PIR with animal immunity
- Active Infrared antimasking
- Easy set up incl. automatic walk test mode
- Versatile design- choice of housing and front covers

Detection method:| Passive infrared

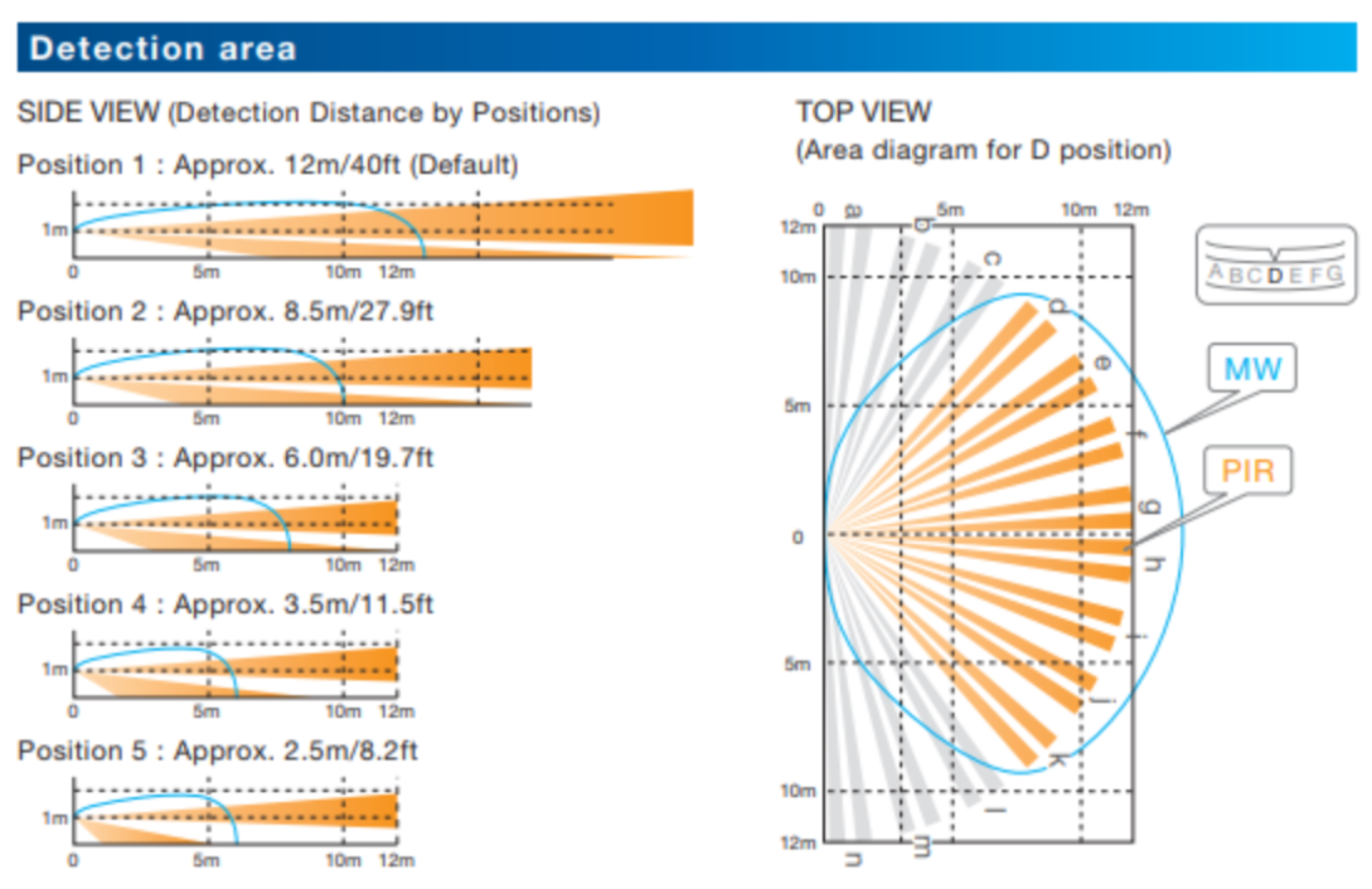

PIR Coverage:| 12 m (40 ft) 90° wide / 16 zones
PIR distance limit:| 2.5 to 12 m (5 levels)
Detectable speed:| 0.3 to 2.0 m / s (1' to 6'7" / s)
Sensitivity:| 2.0 °C ( 3.6 °F) at 0.6 m / s
Power input:| 9.5 to 18 V DC
Current draw (except walk test):| 24 mA max. at 12 V DC
Alarm period:| 2.0 ± 0.1 sec.
Warm-up period:| 60 sec. or less (LED blinks)
Alarm output:| N.C. / N.O. Selectable 28 V DC 0.1 A max
Trouble output:| N.C. 28 V DC 0.1 A max
Tamper output:| N.C. 28VDC 0.1 mA max. open when cover unit, main unit or mounting plate is removed
LED indicator:| Red LED: 1. Warm-up
                                         2. Alarm
                                         3. Masking detection
                                         DIP switch ON or Walk test
                         (DIP switch ON or Walk test)
Operation temperature:| -20°C to +60°C
                                       (-4°F to +140°F)
Environment humidity:| 95 % max
International protection:| IP55
Mounting:| Wall, Pole (Outdoor,Indoor)
Mounting height:| 0.8 to 1.2 m (2'7" to 4')
Weight:| 400 g (14.1 oz.)
