Contents
- X-Security Main Box
- Camera XS-IPMC-4U-L1
- Installation material
- User instructions
XS-IPMCKIT-4U-L1
371,59 €
399,56 €
399,56 €

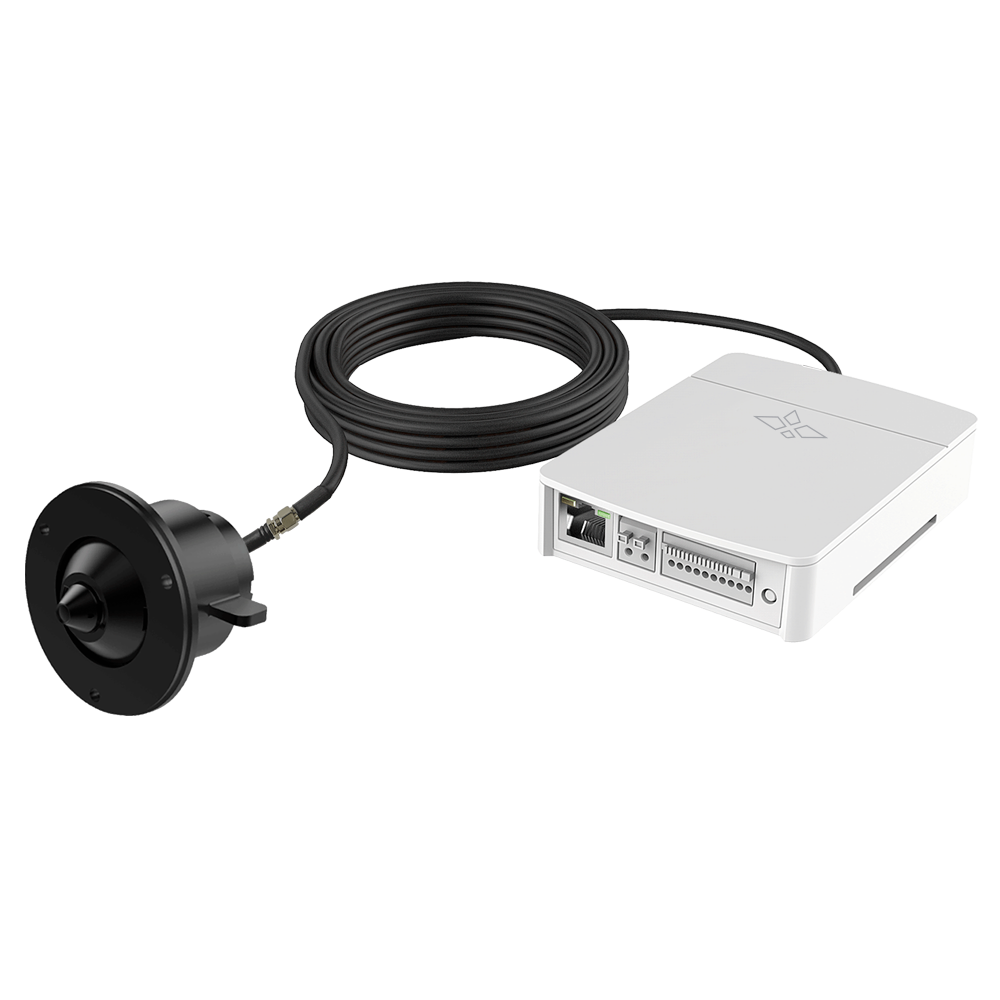

X-Security Pinhole Camera Kit - 4 Megapixel (2688x1520) | Lens 2.8 mm - WDR (120 dB) | 3D NR | Audio | Alarms - Capacity for 3 streams - Compression H.265+/H.265/H.264+/H.264 - PoE IEEE802.3af
Description
- X-Security
- IP Pinhole Camera Kit (Main box + sensor)
- ULTRA Range
- 1/2.7" Progressive Scan CMOS
- 4 Megapixel (2688x1520)
- 2.8 mm Pinhole Lens
- Lens mounting M12
- High sensitivity Starlight
- Colour 0.005 Lux
- WDR
- 3DNR
- Capacity for 3 streams
- Compression H.265+/H.265/H.264+/H.264
- RJ-45 10/100 BaseT
- Perimeter protection, false alarm filter for vehicles and people
- Face Capture: Compatible with facial recognition recorders
- PoE IEEE802.3af
- Audio
- Alarms
- SD card recording
- Intelligent detection: faces, line crossing, intrusion, scene changes
- WEB Interface, CMS (DSS/ PSS), Smartphone and NVR
- ONVIF Compatible
Specifications
| Brand | X-SECURITY |
| Image sensor | 1/2.7" Progressive Scan CMOS |
| Maximum resolution | 4 Megapixel (2688x1520) |
| Lens | 2.8 mm (H: 109º) XS-IPMC-4U-L1 |
| Main Stream rate | 2592×1944 (1–20 fps), 2688×1520 (1–25 fps) |
| Extra Stream rate | Sub stream: 704×576, 704×480 (1–25 fps) Third stream: 1920×1080 (1–25 fps) |
| Minimum illumination | Colour 0.005 Lux @ F2.0 B/W 0.0005 Lux @ F2.0 |
| Image improvements | WDR(120dB), ROI, AWB, 3DNR, MD, Mask, Mirror |
| Compression | H.265+/H.265/H.264+/H.264 |
| Image improvements | BLC, HLC, DWDR, AWB, AGC, 3D-NR, MD, ROI, Mirror, Privacy Masking |
| Day / Night | Automatic electronic filter |
| Intelligent functions | Face detection, tripwire, area intrusion, scene changes & audio detection |
| Network interface | Ethernet 10/100 BaseT |
| Internal memory | SD Card slot, Max. 128GB |
| Alarms | 2 Input / 2 Relay |
| Audio | 1 Input / 1 Output |
| Remote access | WEB, CMS (DSS/PSS), Smartphone and NVR interface |
| Interoperability | ONVIF |
| Power | DC 12 V / 5.1W mA, PoE IEEE802.3af |
| Temp. operation | -40º C ~ 60º C |
| Degree of protection | Interior |
| Unit dimensions | Module: 110 mm (H) x 83 (W) x 24 (D) mm Camera: 48.7 (H) x 30.5 (Ø) mm |
| Weight | 210 g |
