Contents
Speed dome camera
PFB305W wall bracket
Allen wrench
User instructions
CD with software and instructions
XS-SD6325ISWA-2E4N1
373,67 €
415,19 €
415,19 €

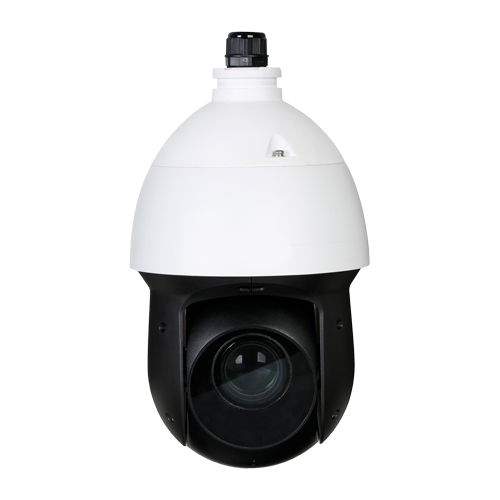

X-Security motorised 240º/s HDCVI camera - 1080P (25/30FPS) / 720P (25/50FPS) - 1/2.8" Sony© 2 Megapixel Starvis CMOS - 6 LEDs Range 100 m - Optical Zoom 25X (4.8~120 mm) - WDR / Audio / Alarms / IP66
Description
X-Security
HDCVI and Analog Motorised Dome Camera
High Speed 240º/segundo
25X Optical zoom
16X Digital zoom
1/2.8" Sony© 2 Megapixel Starvis CMOS
HD 1080P (1920x1080)
Output 4in1
4.8~120 mm Varifocal lens
High sensitivity Starlight
IR Range 100 m
IR Cut
WDR
Audio
Alarms
Pelco P/D protocols supported
OSD Menu
Weatherproof IP66
Wall bracket PFB305W included
Specifications
| Brand | X-Security |
| Image sensor | 1/2.8" Sony© 2 Megapixel Starvis |
| Resolution | 1080Pa 25 FPS / 720P a 50 FPS |
| Video output | 1 x BNC switchable HDCVI / CVBS |
| Minimum illumination | 0.005 Lux (color) @F1.6 / 0 Lux (B/N) |
| Infrared lighting | 6 automatic LEDs with IR range of up to 100 meters |
| Lens | Varifocal 4.8~120 mm (Optical Zoom 25X) |
| Digital zoom | 16 X |
| Electronic shutter | 1/3s~1/100,000s |
| Day / Night | Removable mechanical ICR filter |
| Gain Control | Auto / Manual |
| Backlight compensation | BLC, HLC,WDR (120dB), AWB, ATW, AGC, 2D/3D-NR, privacy masking |
| Pan/Tilt Range | Horizontal: 0°~360°, Vertical: -15°~90° auto flip 180° |
| Manual speed | Horizontal: 0.1° ~200°/s, Vertical: 0.1° ~120°/s |
| Speed between Presets | Horizontal: 240° /s, Vertical: 200° /s |
| Preset positions | 300 preset, 5 auto pattern, 8 auto tour,auto pan, auto scan |
| Communication | RS485, Pelco P / Pelco D / DH-SD |
| Audio | 1 input (Line In) |
| Alarms | 2 inputs / 1 relay NO/NC |
| Power | 12 V DC / 3 A |
| Temp. operation | -40º C ~ +70º C |
| Degree of protection | IP66 |
| Dimensions (without bracket) | 295 mm (H) x 160 (Ø) mm |
| Weight (without bracket) | 4200 g |
