Contents
- X-Security PoE Switch
- AC/DC Power adaptor
- User instructions
XS-SW0604HIPOE-F-60-DIN
86,10 €
95,67 €
95,67 €

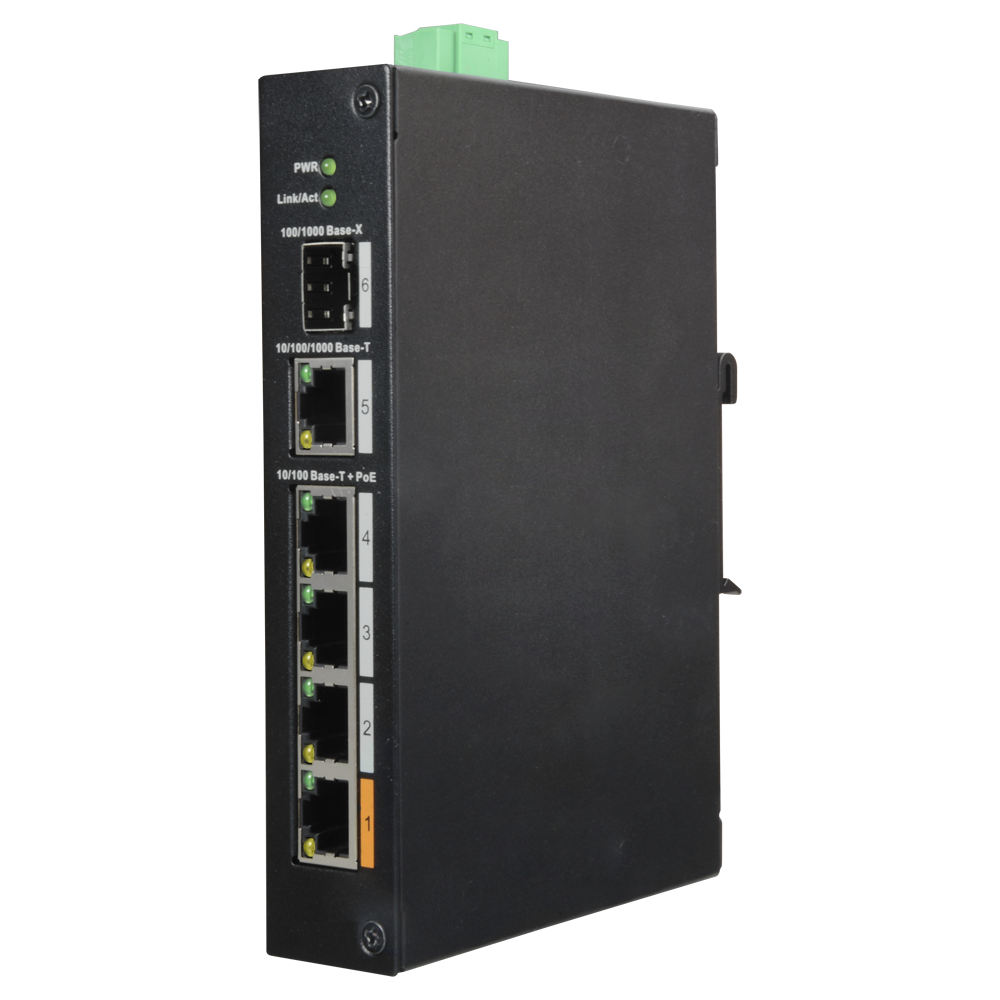

X-Security PoE Switch - 4 PoE ports +1 SFP +1 Uplink Gigabit - Speed 10/100/1000Mbps - Port 60W 1 / ports 30W 2-4 / maximum 60W - Hi-PoE / IEEE802.3at (PoE+) / af (PoE) - DIN rail mount
Description
- X-Security
- Desktop Switch
- 4 ports RJ45 10/100 Mbps + 1 Uplink Port 100/1000 Mbps
- 1 Gigabit SFP Port
- Supports PoE power up to 60 W total for all ports
- Up to 60W on port 1 and up to 30W on ports 2-4
- Compatible with PoE IEEE802.3af/at and Hi-PoE
- Din rail mounting
Specifications
| Interface | 4 PoE ports RJ45 + 1 SFP port of fibra+1 Gigabit Uplink port |
| Port speed | 4 x 10/100 Mbps + 1 x 100/1000 Mbps + 1 x 10/100/1000 Mbps T-base |
| Power supply | Up to 60W (HI-POE) on the 1 port and up to a maximum of 30W between the 2-4 (60 W ports for the entire device) |
| PoE features | Hi-PoE / IEEE 802.3at PoE+ / IEEE 802.3af PoE |
| Installation | DIN rail |
| Power | DC 48 V ~ 57 V |
| Operating temperature | -30º C ~ 65º C |
| Dimensions | 108 (D) x 30 (H) x 150 (W) mm |
| Weight | 440g |
