- X-Security ePoE Switch for DIN rail
- AC/DC Power adaptor
- User instructions
XS-SW1008EPOE-120-DIN
139,67 €
150,18 €
150,18 €

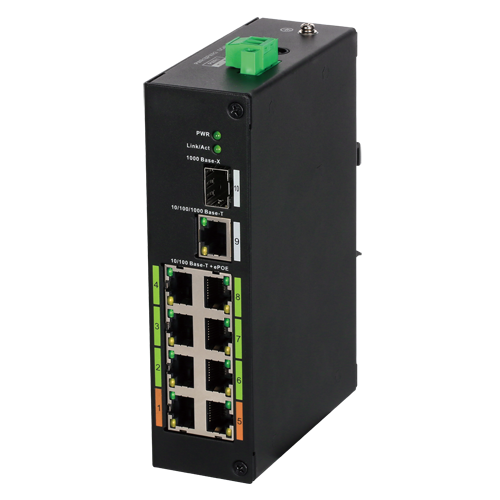

X-Security ePOE Switch - 8 PoE ports + 1 Uplink RJ45 + 1 SFP - Speed 10/100Mbps - Power 60 W per port - Total maximum power 120 W - Norm IEEE802.3at (PoE) / af (PoE+)
Description
- X-Security
- Switch for DIN rail
- 8 ports RJ45 10/100 Mbps + 1 Uplink RJ45 Gigabit + 1 SFP
- 8 ePoE ports
- Transmission distance up to 800m
- Supports ePoE powering up to 120W in total for all ports
- Compatible with PoE IEEE802.3af/at and Hi-PoE
Specifications
| Interface | 8 PoE ports RJ45 + 1 Gigabit Combo Port |
| Port speed | 8 x 10/100 Mbps / 1 x 10/100/1000 Base-T / 1 x 1000 Base-X |
| Power supply | Up to 60W between ports 1 and 5, 30W between ports of 2,3,4,6,7,8 (120 W for the entire device) |
| PoE features | Hi-PoE / IEEE 802.3at PoE+ / IEEE 802.3af PoE |
| Transmission distance | 800 m up to 10Mbps |
| Power | DC 48 V - 57 V |
| Operating temperature | -30º C ~ 65º C |
| Dimensions | 100 (D) x 42 (H) x 150 (W) mm |
