Contents
- Outdoor video intercom panel
- Surface bracket for the panel
- Interior monitor
- 2 wires hub
- Power supply
XS-VTK2202-2
249,86 €
268,67 €
268,67 €

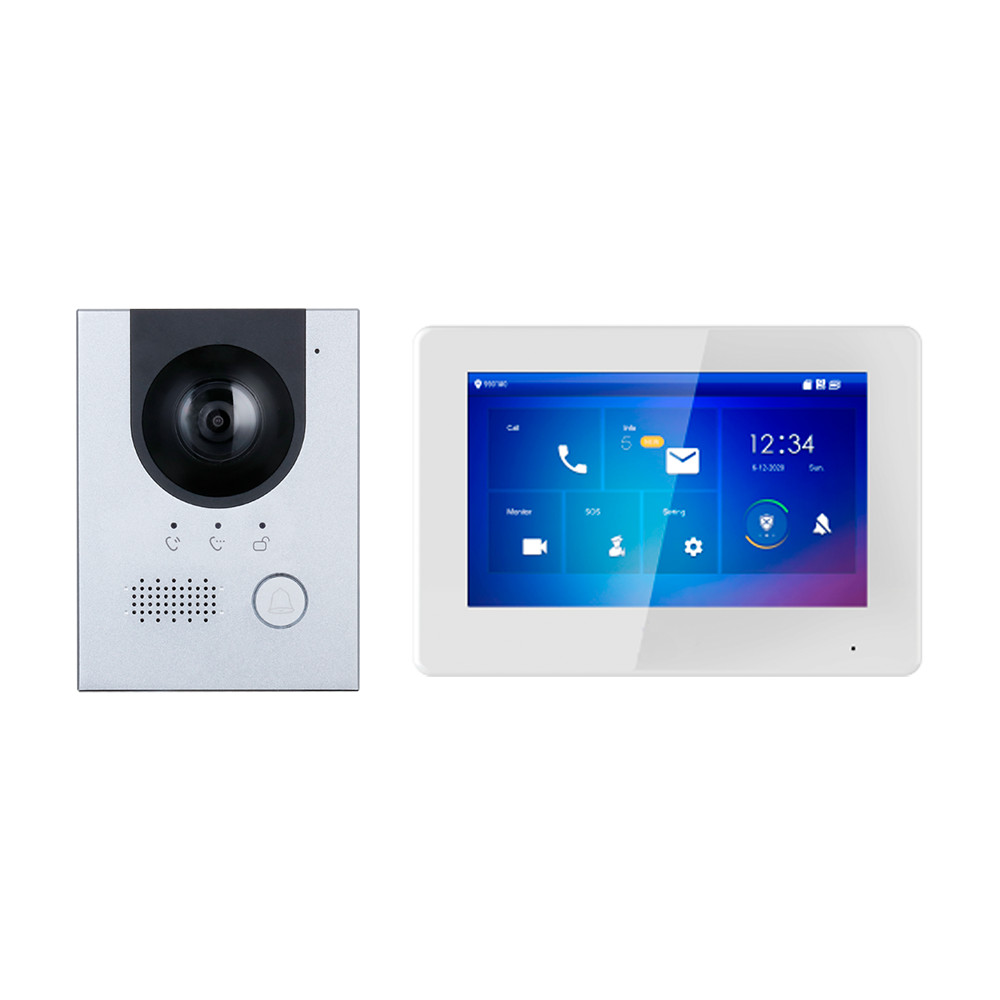

Video-intercom kit - Technology 2 wires and PoE - Includes Board, Monitor, Hub 2 wires and bracket - Mobile App with P2P - Surface mounting
Description
- X-Security
- Video intercom kit
- 2 wire connectivity
- Kit consisting of:
- XS-V2202E-IP exterior video intercom panel with 2Mpx camera
- XS-V5422M-2POE 7" LCD TFT interior monitor
- XS-V2003B-2IP converter from 2-wire to IP
- VTM115 surface bracket
- 48VDC Power supply
- Monitoring via DSS Express Software or DMSS mobile app
Specifications
Panel | |
| Brand | X-Security |
| Model | XS-V2202E-IP |
| Operating system | LINUX OS |
| Image sensor | 2 MP CMOS HD low light |
| Lens | 2 mm |
| Viewing angle | D: 120º H:160º |
| Audio | Bidirectional audio with microphone and speaker |
| Keypad | Mechanical button with LED backlit name-tag |
| Outputs | 1 for lock control, 1 alarm, 1 tamper, 1 12V/100mA output |
| Inputs | 1 alarm, 1 door status, 1 Eoc, 1 push button |
| Remote access | Web browser, Mobile App or SmartPSS software |
| Network interface | Ethernet 10/100 BaseT |
| Power | DC 12 V / 1A max. / (802.3af) PoE or 2 wires via hub |
| Degree of protection | IP65, IK07 |
| Material | Stainless steel |
| Temp. operation | -30º C ~ +60º C |
| Dimensions | 130 (H) x 96 (W) x 28.5 (D) mm |
| Weight | 350 g |
Monitor | |
| Brand | X-Security |
| Model | XS-V5422M-2POE |
| Operating system | LINUX OS |
| LCD | 7" TFT 1024x600, Capacitive |
| Operation mode | Tactile Buttons |
| Inputs | 6 Configurable alarm inputs / bell output |
| Audio | Two-way audio with microphone and speaker with noise cancellation |
| Remote access | DMSS mobile phone application or DSS Express software |
| Memory | Supports MicroSD up to 64 GB |
| Network interface | Ethernet 10/100 BaseT and 2 wires |
| Power | DC 12 V / 450 mA max. / PoE (802.3af) |
| Temp. operation | -10º C ~ +55º C |
| Dimensions | 130 (H) x 189 (W) x 26.9 (D) mm |
| Weight | 388 g |
2 wires hub | |
| Brand | X-Security |
| Model | XS-V2003B-2IP |
| Operation mode | Power, Video & Audio all via the 2 wire technology |
| Outputs | 3 groups of 2 wires |
| Communication | Technology 2-hilos (Up to 20 monitors and 2 boards) | Up to 10 cascading levels |
| Connection | 2 x RJ45 |
| Power | DC 48 V / 1-3 A max. |
| Temp. operation | -10º C ~ +55º C |
| Dimensions | 131 (H) x 103 (W) x 40 (D) mm |
| Weight | 400 g |
Bracket | |
| Model | VTM115 |
| Material | Aluminium alloy |
| Dimensions | 129mm (H) x 95mm (W) x 28,5mm (Fo)/td> |
| Weight | 400 g |
| Mounting | Wall surface |
